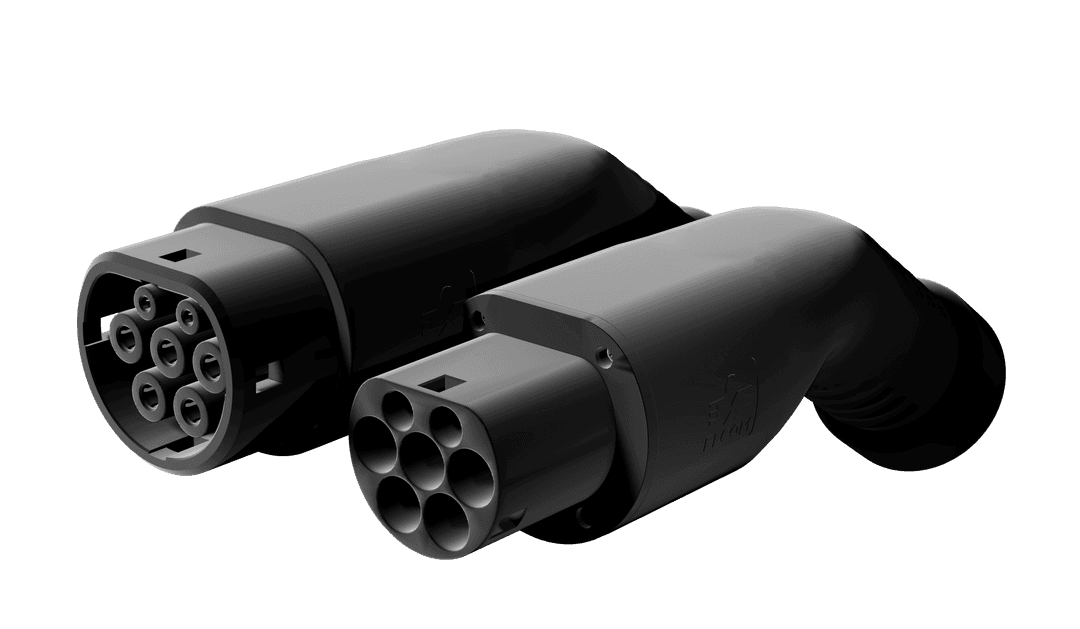

Type 2 Plug(16A to 63A)
Type
2
Plug(16A
to
63A)
- Reference Standard
IEC 62196-1, IEC 62196-2, IEC 62893, IS-17017-1, IS 17017-2
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Type
Vehicle Connector (IIe) & Plug (IIb)
Rated Current
16A, 32A,63A
Rated Voltage
250V AC / 480V AC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Signal Rating
2A 30V AC(For PP & CP)
Insulation Resistance at DC 500V
>1000 MΩ
Resistor coding (between PE and PP)
For 16A 680 Ω & for 32A 220 Ω
Contact Resistance
0.5mΩ Max
H.V.Break Down Test
2KV
Mechanical Life
>10000
Insertion Force
<100 N
Withdrawal Force
<100 N
Permissible Temp. With/Without Load
30°C TO 50°C
Protection Degree
Mating- IP44 & Unmating -IP55(With Protection Cap)
Material
Material
Parameters
Specification
Cable
Thermo Plastic
Outer Sheath
EVM-1/ EVM-2/EVM-3
Cable Sheath Colo
Black Color
Conductors
Bare Copper, class 5
Shell Material
Thermoplastic
Cable Core
Cable
Core
Parameters
Specification
Live , Neutral,CP
As per table of Cable details
Earth,PP
As per table of Cable details
Reference Standard and Approvals
Reference
Standard
and
Approvals
Parameters
Specification
Reference Standard
IEC 62196-1, IEC 62196-2, IEC 62893, IS-17017-1, IS 17017-2
