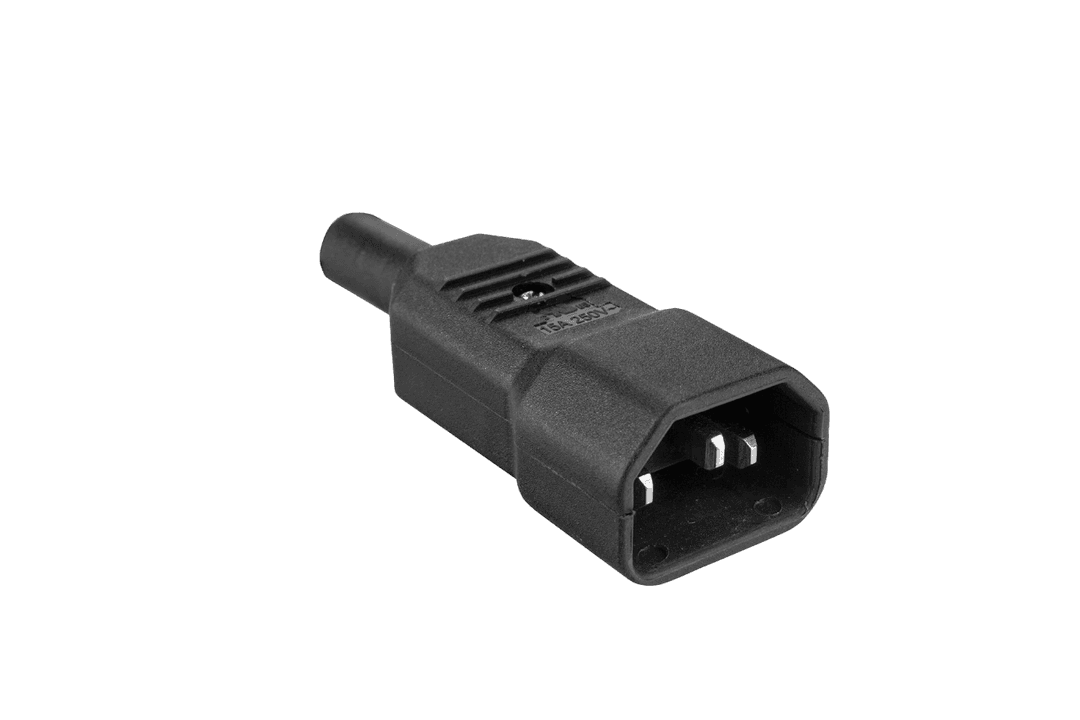

EMI-40-X (SERIES)
EMI-40-X
(SERIES)
Specification
- Reference standard
EC 60320-1, IEC 60320-3, UL-498, CSA:C22.2 No.182.3
- Approval
VDE, cULus
- Compliance Marking
CE, RoHS
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description
Rewirable Plug Connector
V/A Rating
10A/15A , 250VAC
Contact resistance (Initial)
10 mohms max.
Insulation resistance at 500 V DC
100 Mohms min
H.V.Break down test (For 1minute)
2 KV AC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Mounting
--
Terminals
Screw-type
Cable size
0.75 Sq mm min., 1.0 Sq mm max.
Screw torqe
4 kg cm
Permissible Temp. With/Without Load
0 To 65°C (UL){* Also available up to 125°C on request for UL only} 0 To 70°C (VDE)
Material
Material
Parameters
Specification
Body, Cable Lock
Nylon-6, 20%GF V-2
Cable Guide
PVC
Contacts, Terminals
Brass, Nickel plating
Terminal Screws
M.S. Zinc Plating
Reference Standard and Approvals
Reference
Standard
and
Approvals
Parameters
Specification
Reference standard
IEC 60320-1, IEC 60320-3, UL-498, CSA:C22.2 No.182.3
Approval
VDE, cULus
Compliance Marking
CE, RoHS
Data Sheet
Elcom EMI-40-X (SERIES) Data Sheet
318 KB
