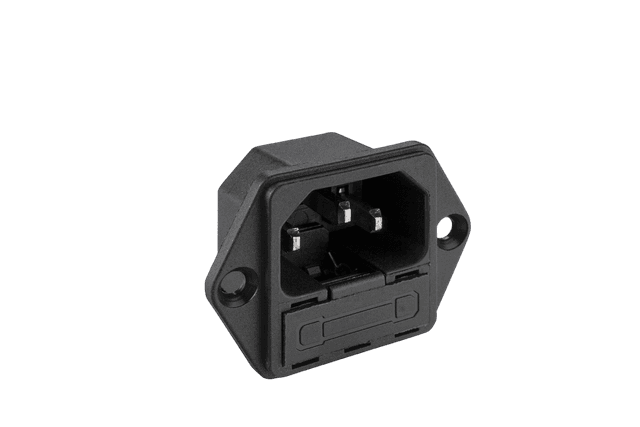

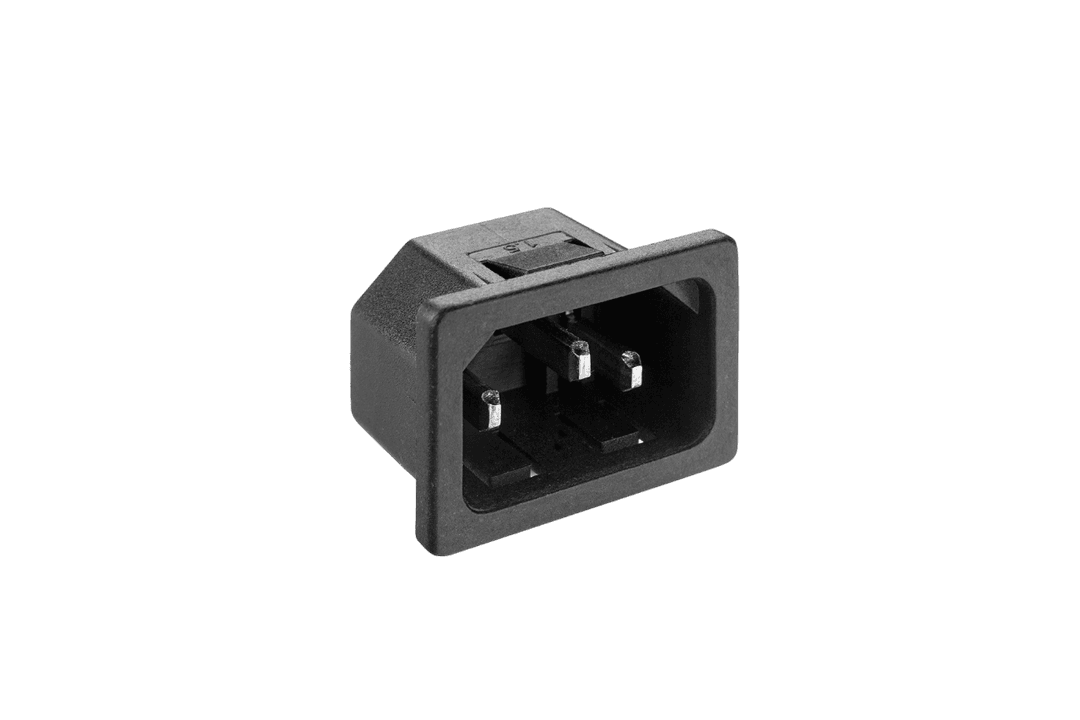

EMI-10-X
EMI-10-X
Specification
- Reference Standard
IEC 60320-1, IEC 60320-3 UL-498, CSA:C22.2 No. 182.3
- Approval
VDE, cULus
- Compliance Marking
CE, RoHS
Specification
Electric Characteristics
Electric
Characteristics
Parameters
Specification
Product Category / Description
IEC INLET
V/A Rating
10A/ 15A, 250V
Contact Resistance (Initial)
10 mohms max
Insulation Resistance at 500 VDC
1000 M ohms Min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Operating/Characteristics
Operating/Characteristics
Parameters
Specification
Mounting
Panel, Snap-in type
Terminals
Solder-type / Fast-On
Panel Thickness
Standard : 1.5
Permissible Temp. With/Without Load
0 To 65°C (UL){* Also available up to 125°C on request for UL only} 0 To 70°C (VDE)
Permissible Temp. For Soldering
270°C for 5 Sec. Max.
Material
Material
Parameters
Specification
Body
Nylon-6, GF20%, V-2
Terminals
Brass, Tin plating
Contacts
Brass, Nickel plating
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
IEC 60320-1, IEC 60320-3 UL-498, CSA:C22.2 No. 182.3
Approval
VDE, cULus
Compliance Marking
CE, RoHS
Features
Features of EMI-10-X
Features
of
EMI-10-X
Appliance Inlets / Outlets available in wide range of current ratings
Wide range of mounting styles and terminals to suit various design requirements.
Components available according to IEC & UL standards.
Wide range of Safety approvals from UL,CSA,VDE,CE etc
Wide range of operating temperature - up to 125 Deg Centigrade.
Download PDF
Elcom EMI-10-X Data Sheet
321 KB
