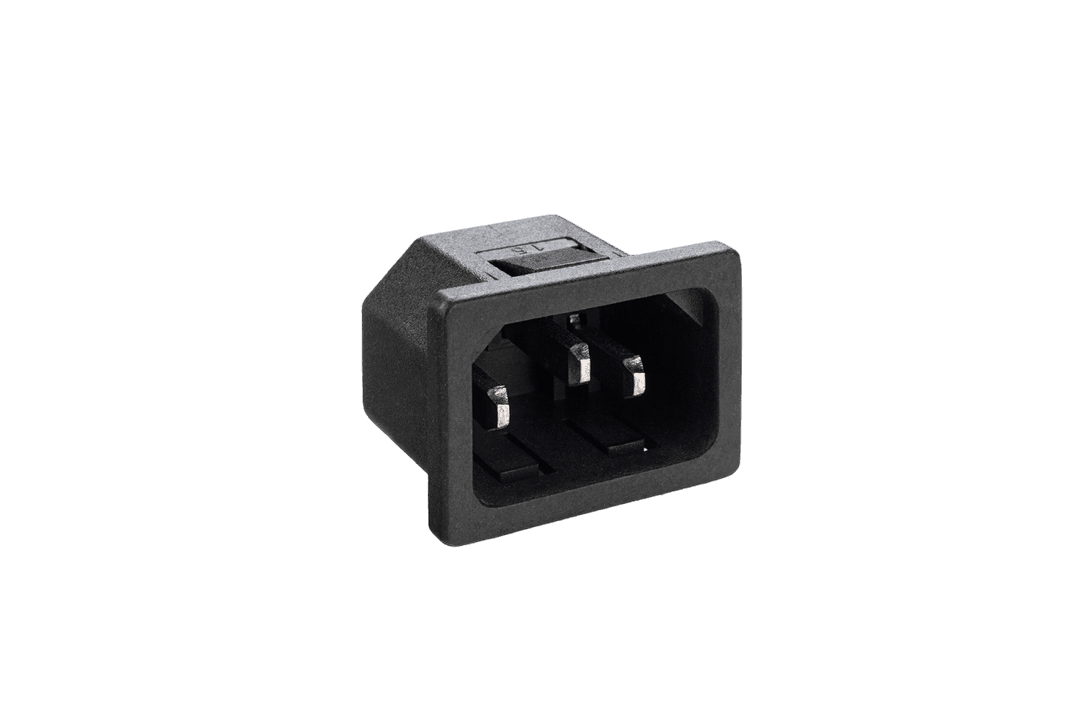

EMI-14-X
EMI-14-X
Specification
- Reference Standard
IEC 60320-1, IEC 60320-3, UL-498, CSA:C22.2 No. 182.3-16
- Approval
VDE, cULus
- Compliance Marking
CE, RoHS
Specification
Electric Characteristics
Electric
Characteristics
Parameters
Specification
Product Category / Description
IEC INLET
V/A Rating
10A 250V AC 15A 250V AC (IEC)
Contact resistance (Initial)
10 mohms max.
Insulation Resistance at 500 VDC
1000 M ohms Min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Operating/Characteristics
Operating/Characteristics
Parameters
Specification
Mounting
Panel, Snap-in type
Terminals
Solder-type / Fast-on 6.3
Permissible Temp. With/Without Load
0 To 65°C (UL){* Also available up to 125°C on request for UL only} 0 To 70°C (VDE)
Permissible Temp. For Soldering
270°C for 5 Sec. Max.
Material
Material
Parameters
Specification
Body
Nylon
Contacts, Terminals
Brass, Tin plating
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
IEC 60320-1, IEC 60320-3, UL-498, CSA:C22.2 No. 182.3-16
Approval
VDE, cULus
Compliance Marking
CE, RoHS
Features
Features of EMI-14-X
Features
of
EMI-14-X
Appliance Inlets / Outlets available in wide range of current ratings
Pioneers of High Retention Force for the inlet, outlet components.
Wide range of mounting styles and terminals to suit various design requirements.
Components available according to IEC & UL standards.
Wide range of Safety approvals from UL,CSA,VDE,CE etc
Wide range of operating temperature - up to 125 Deg Centigrade.
Data Sheet
Elcom EMI-14-X Data Sheet
319 KB
