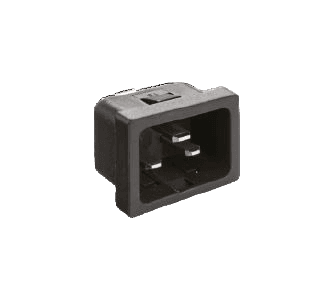

EMI-18-V (SERIES)
EMI-18-V
(SERIES)
Specification
- Reference Standard
IEC-60320-1, UL-498, CSA : C 22.2 No. 182.3-M1987
- Safety Approvals
cULus, VDE
- CE Marking
Yes
Specification
Electric Characteristics
Electric
Characteristics
Parameters
Specification
Product Category / Description
IEC INLET (V Lock variety)
V/A Rating
"16A (VDE ) 20A (UL)", 250V AC
Contact Resistance (Initial)
20 m ohms max.
Insulation Resistance At 500 V DC
1000 M ohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Operating/Characteristics
Operating/Characteristics
Parameters
Specification
Mounting
Panel, Snap-in type
Terminals
Solder-type / Fast-On
Panel Thickness
Standard : 1.5
Permissible Temp. With/Without Load
0 To 65°C (UL){* Also available up to 125°C on request for UL only} 0 To 70°C (VDE)
Permissible Temp. For Soldering
270°C for 5 Sec. Max.
Material
Material
Parameters
Specification
Body
Nylon 6 FR V-2
RoHS compliant
Yes
Colour (Standard)
Black
Current Carrying Parts
Cu Alloy, Nickel Plating
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
IEC-60320-1, UL-498, CSA : C 22.2 No. 182.3-M1987
Safety Approvals
cULus, VDE
CE Marking
Yes
Features
Features of EMI-18-V (Series)
Features
of
EMI-18-V
(Series)
Appliance Inlets / Outlets available in wide range of current ratings
Wide range of mounting styles and terminals to suit various design requirements
Components available according to IEC & UL standards.
Wide range of Safety approvals from UL,CSA,VDE,CE etc
Wide range of operating temperature - up to 125 Deg Centigrade.
Pioneers of High Retention Force for the inlet, outlet components.
Data Sheet
Elcom EMI-18-V (Series) Data Sheet
412 KB
