Specification
Electric Characteristics
Electric
Characteristics
Parameters
Specification
Product Category / Description

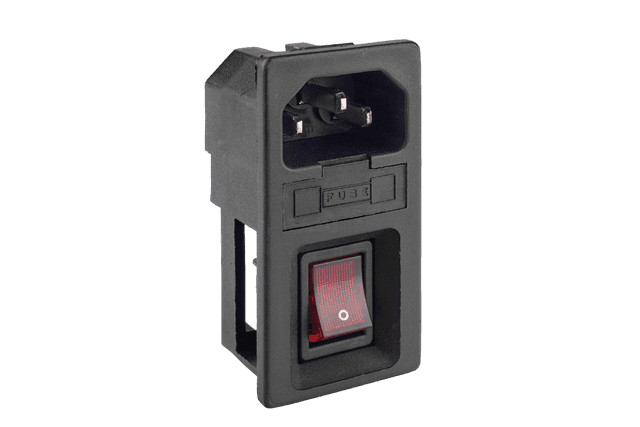

IEC INLET
V/A Rating
"16A (VDE ) 20A (UL)", 250V AC
Contact Resistance (Initial)
10 m ohms max.
Insulation Resistance At 500 V DC
1000 M ohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Operating/Characteristics
Operating/Characteristics
Parameters
Specification
Mounting
Panel, Screw-type
Terminals
Solder-type / Fast-On
Permissible Temp. With/Without Load
0 To 65°C (UL){* Also available up to 125°C on request for UL only} 0 To 70°C (VDE)
Permissible Temp. For Soldering
270°C for 5 Sec. Max.
Material
Material
Parameters
Specification
Body
Nylon-6, GF20%, V-2
Terminals
Brass, Tin plating
Contacts
Brass, Nickel plating
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
IEC 60320-1, IEC 60320-3, UL-498, CSA : C22.2 No.182.3
Approval
VDE, cULus
Compliance Marking
CE, RoHS
Features
Features of EMI-28-X
Features
of
EMI-28-X
Pioneers of High Retention Force for the inlet, outlet components.
Wide range of operating temperature - up to 125 Deg Centigrade.
Wide range of Safety approvals from UL,CSA,VDE,CE etc
Components available according to IEC & UL standards.
Wide range of mounting styles and terminals to suit various design requirements.
Appliance Inlets / Outlets available in wide range of current ratings
Data Sheet
Elcom EMI-28-X Data Sheet
336 KB
