Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification

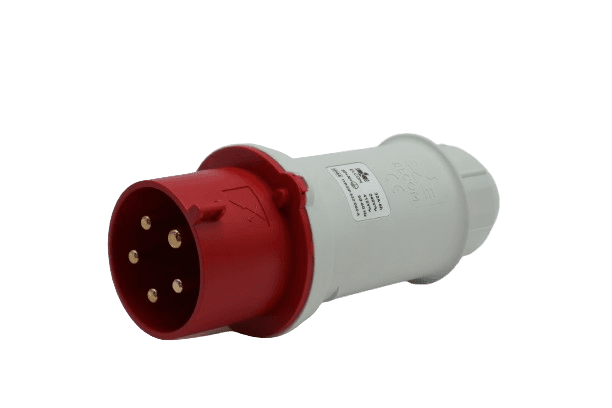

Industrial Plug
32A, 5 Pin (3P+ N+ E)
V/A Rating
32A, 200V/346V-250V/415C AC, 50 - 60Hz
Insulation Resistance At 500 V DC
100 M ohms min.
H.V.Break Down Test (For 1-Minute)
2 KV AC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Terminals
Screw-type
Applicable Cable Sizes
4 - 6 Sq mm
Earth Position
6h
Plug Angle
20°
Permissible Temp.
-25°C TO +90°C
. Tightening Torque for Screw
0.9 Nm Max.
Weight
345 gm (Approximate)
Material
Material
Parameters
Specification
Body
Polyamide , V2
Terminals
Copper Alloy
Terminal screws
MS, Zinc Plated
Reference Standard and Approvals
Reference
Standard
and
Approvals
Parameters
Specification
IP Protection type
IP67
Reference Standard
IEC/EN 60309-1, IEC/EN 60309-2, UL-1686
Compliance Marking
CE, RoHS Complied
Download PDF
Elcom IPS 3572
462 KB
