Specification
- Reference Standard
IEC/EN 60309-1, IEC/EN 60309-2, UL-1686
- IP Protection Type
IP44
- Compliance Marking
CE
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Industrial Socket Type
63A, 5 Pin (3P+N+E)
V/A Rating
63A, 200V/346V-240V - 240V/415V AC, 50-60Hz
Insulation Resistance At 500 V DC
100 M ohms min
H.V Break Down Test(For 1 Min)
2 KV AC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Terminals
Screw Type
Applicable Cable Size
10-16 Sq mm
Earth Position
6h
Socket Angle
Angled(20°)
Permissible Temperature
-20°C to +80°C
Weight
670 gms(Approximate)
Material
Material
Parameters
Specification
Body
Polyamide
Terminals
Brass
Terminal Screw
MS, Zinc Plated
Reference Standard and Approvals
Reference
Standard
and
Approvals
Parameters
Specification
IP Protection Type
IP 44
Reference Standard
IEC/EN 60309
Data Sheet

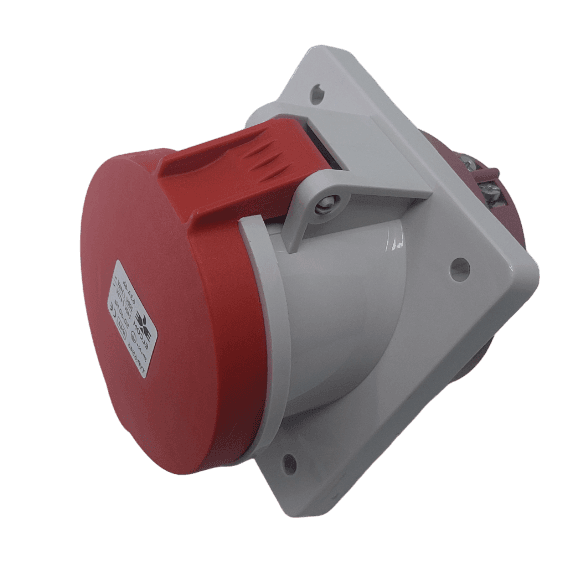

Elcom 6546 Industrial Socket Data Sheet
614 KB
