IPS 3549
IPS
3549
Specification
- Reference Standard
IEC/EN 60309-1, IEC/EN 60309-2, UL-1686
- Compliance Marking
CE
- IP Protection Type
IP 44
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Surface Mount Socket Type
32A, 5 Pin(3P+N+E)
V/A Rating
32A, 200/346V - 240/415V AC
Insulation Resistance At 500 V DC
100 M ohms min
H.V Break Down Test (For 1 Min)
2 KV AC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Terminals
Screw Type
Applcable Cable Size
4- 6 sqmm
Earth Position
6h
Plug Angle
25°
Permissible Temperature
-20°C to +60°
Weight
478 gm (Approximate)
Material
Material
Parameters
Specification
Body
Polyamide
Terminals
Copper Alloy
Terminal Screw
MS, Zinc Plated
Reference Standard and Approvals
Reference
Standard
and
Approvals
Parameters
Specification
IP Protection
IP 44
Reference Standard
IEC/EN 60309-1, IEC/EN 60309-2, UL-1686
Compliance Marking
CE
Data Sheet

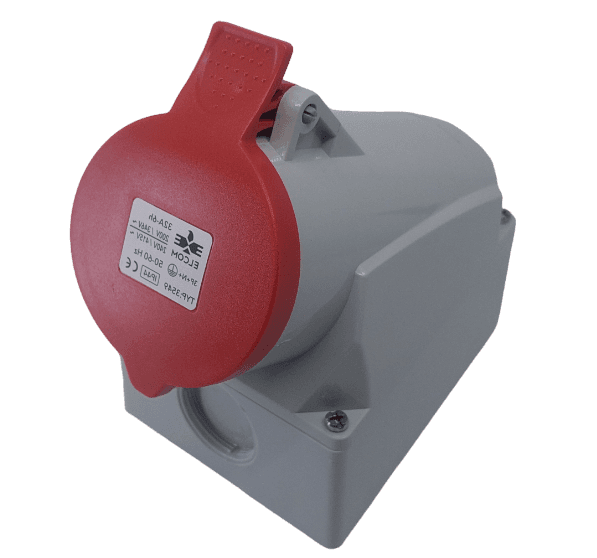

Elcom 3549 Industrial Socket
610 KB
