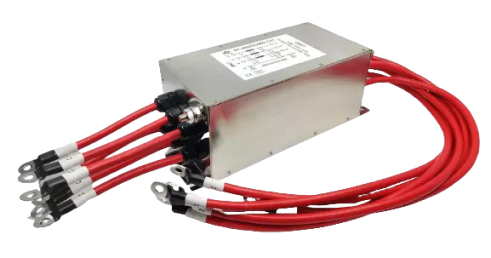

EC51
EC51
Specification
- Reference Standard
EN60939-3:2015 & EN60939- 2:2005 standards.
- Approval
CE, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
250/440 VAC,277/480 VAC, 300/520VAC
Current rating
100A - 300A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
Phase and Natural -> E 1500VAC
Insulation resistance
≥ 300 MΩ @ 500VDC (Phase and Natural)
Operating temperature
40°c /-25°c +85°c
Safety Aproval
Safety
Aproval
Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features
Features of EC51 Filter
Features
of
EC51
Filter
Filters available in single stage & double stage
All filters provide high attenuation performance.
Filters designed for noisy application requiring excellent filter performance
All filters compliance to EN60939-3:2015 & EN60939- 2:2005 standards.
Benefits
Benefits of EC51
Benefits
of
EC51
- High reliable
- Easy and fast chassis mountable filter with compact size.
- CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
- Various terminal options are available
- Application: Consumer product, Defence application, Industrial application, Automotive application, Weighting Machines, Printing Machinery, Electrical equipment application, Office automation equipment
Download PDF
Elcom EC51 Filter Data Sheet
