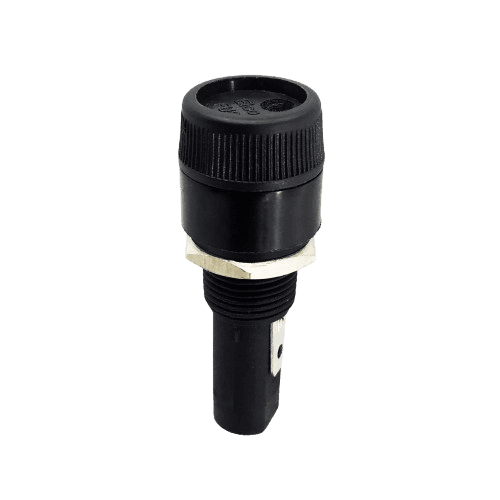

FH-1 Series
FH-1
Series
Specification
- Reference Standard
IEC-60127-6
- Compliance Marking
CE, RoHS ( On Request )
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category/Description
Panel mounting Fuse holder
V/A Rating
6.3A, 250 V AC
Contact Resistance (Initial)
10 m Ohms Max.
nsulation Resistance at 500 V DC
1000 M Ohms Min.
H.V.Break Down Test (For 1-Minute)
2 KV AC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Operating Temperature
-20°C TO +85°C
Permissible Temperature
270°C for 5 Sec. Max
Mounting
Panel, Screw-type
Terminals
Solder-type
Panel Thickness
3.0 Max
Fuse Link Size
5.0x20.0 mm
Material
Material
Parameters
Specification
Body
Nylon
Cap
Nylon
Terminals
Brass, Tin plating
Standard and Approvals
Standard
and
Approvals
Parameters
Specification
Reference Standard
IEC-60127-6
Compliance Marking
CE, RoHS ( On Request )
Data Sheet
Elcom FH-1 Series Data Sheet
136 KB
