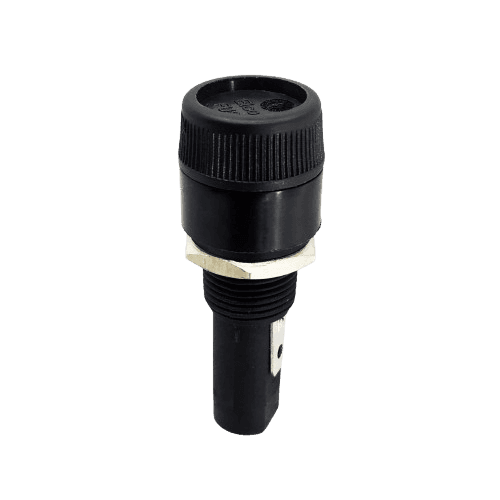

PFH-511
PFH-511
Specification
- Reference Standard
IEC 60127-6
- Compliance marking
CE, RoHS ( On Request )
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description
Panel mounting fuse holder
Fuse Size
ø 6.30 x 32 mm
V/A Rating
10 A, 250V AC
Insulation Resistance at 500 VDC
1000 M ohms Min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Contact Resistance (Initial)
10 m ohms Max
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Operating Temp. Range
-55°C to +85°C
Permissible Temperature
270° C, 5 seconds max.
Mounting
Panel, Screw Type
Panel Thickness (standard)
3.00 mm Max
Terminals (Standard)
4.8 mm with Round hole (Solder-type)
Material
Material
Parameters
Specification
Body
Nylon
RoHS compliant
No (Variety Available Through another code)
Colour (Standard)
Black
Current Carrying Parts
Cu Alloy, Tin Plating
Knob Colour
Black
Features
Features of PFH-511
Features
of
PFH-511
Can be used as an alternative to circuit breakers
Availability of synchronized Fuse holders, in either single or double fuse with IEC inlets
Simple mounting styles and economy of space
Wide range of mounting styles and terminals to suit various design requirements
Wide range of operating temperature - up to 125 Deg Centigrade
Data Sheet
Elcom PFH-511 Data Sheet
244 KB
