Specification
Electric Characteristics
Electric
Characteristics
Parameters
Specification
Product Category / Description

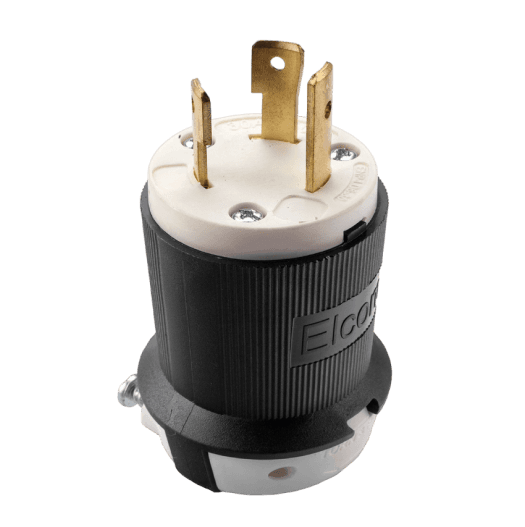

NEMA TWIST LOCK PLUG
Connector Type
Twist lock L6-30P type
V/A Rating
250Vac, 30A
Insulation Resistance At 500 V DC
100 Mohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Operating/Characteristics
Operating/Characteristics
Parameters
Specification
Permissible Temp. With/Without Load
0°C TO 75°C
Terminals
Screw-type 10 AWG
Material
Material
Parameters
Specification
Body
Nylon, Black
Cord Clamp
Nylon, Natural (White) Tightening Torque : 18-21 Kg-cm.
Contact Holder
Nylon, Natural (White)
Retainer
PolyCarbonate, Clear
Contact Blade
Copper Alloy.
Terminal screws
Brass, Tightening Torque : 12 Kg-cm min.
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
UL-498, UL-486E, NEMA WD 6,CAN/CSA C22.2 No.0-M91, CSA C22.2 No.42-99
Approvals
File no.E362808 (UL LISTED)
Flammability
UL 94, V-0
Download PDF
Datasheet
370 KB
