Specification
Electric Characteristics
Electric
Characteristics
Parameters
Specification

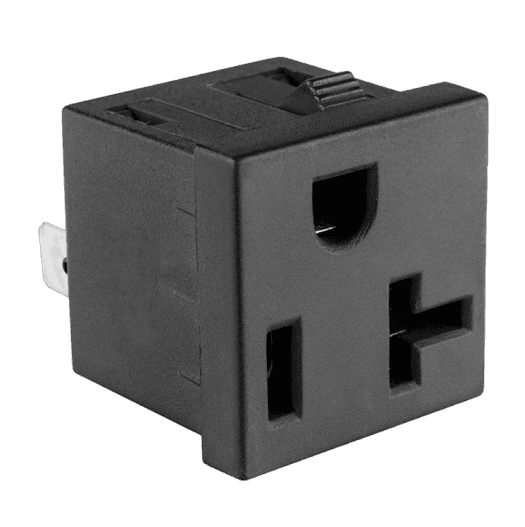

Product Category / Description
NEMA Receptacle
Type / Sub Type
Straight Blade
NEMA Type
5-20R Type
V/A Rating
125V 20A
Insulation Resistance at 500 VDC
100 M ohms Min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Contact Resistance (Initial)
10 m ohms Max
Operating/Characteristics
Operating/Characteristics
Parameters
Specification
Mounting
Panel, Snap mounting
Panel Thickness
1.00-2.00mm
Terminals
6.30 x 0.80
Withdrawal force in kg
1.3 to 6.7 kg
Permissible Temp. With/Without Load
0°C TO 65°C * on request upto 125°C
Permissible Temp. For Soldering
270°C for 5 Sec. Max.
Material
Material
Parameters
Specification
Body, Cover
Nylon-6, GF20%, V-2
Color (Standard)
Black
Current Carrying Parts
Cu Alloy, Tin Plating
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
UL-498, NEMA WD 6:2002, CAN / CSA C22.2 No. 42-99
Safety Approvals
cULus
Download PDF
Datasheet
319 KB
