Specification
Electric Characteristics
Electric
Characteristics
Parameters
Specification
Product Category / Description

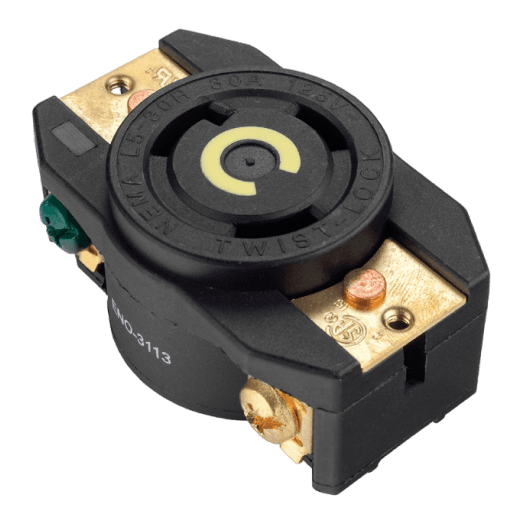

NEMA SOCKET
Connector Type
Twist lock L5-30R type
V/A Rating
125V 30A
Contact Resistance (Initial)
10 mohms max.
Insulation Resistance at 500 VDC
100 M ohms Min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Operating/Characteristics
Operating/Characteristics
Parameters
Specification
Mounting
Panel, Screw-type
Terminals
Screw-type #14 to #8 AWG
Permissible Temp. With/Without Load
0°C TO 65°C * on request upto 125°C
Material
Material
Parameters
Specification
Body, Cover
Nylon-6, UL-94 V-0
Contacts, Terminals
Brass ,Tin Plating
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
UL-498, UL-486E, NEMA WD 6 CAN/CSA C22.2 No.0-M91, CSA C22.2 No.42-99
Approvals
cULus, cCSAus
Download PDF
Datasheet
617 KB
