EPC1920R-Series
EPC1920R-Series
Specification
- Reference Standard
IEC-60320-1,IEC-60320-3,IEC-60799
- Compliance Marking
CE, ROHS
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description

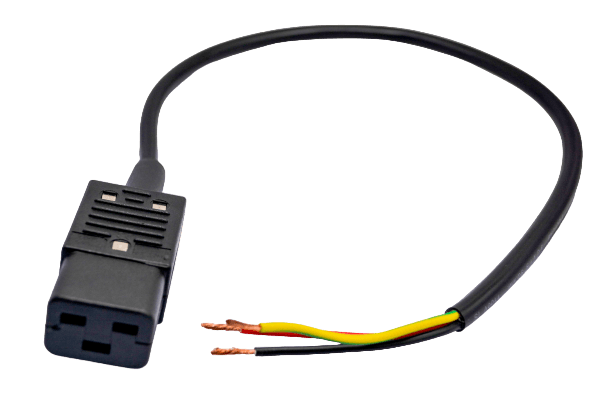

Mains Cord with IEC connector combination
Combination
IEC C19 & C20
V/A Rating
16A, 250 Vac.
Insulation Resistance at 500 VDC
100 M Ohms Min.
H.V.Break Down Test (For 1-Minute)
1.5 KV AC.
Operating/Functional Characteristics
Operating/Functional
Characteristics
Parameters
Specification
https://elcom-in.com/products/epc1920r-series/#:~:text=Permissible%20Temp.%20(With/Without%20Load)
-20°C TO 70°C
Length (L) Meters
Standard = 1.0 Mtr (Refer Ordering Table)
Colour
Black (standard), Red/Blue/Yellow
Material
Material
Parameters
Specification
Cable
PVC
Conductors
Copper
Conductors (Size)
3X1.5 sq.mm
Contacts
Copper Alloy, Nickel Plated.
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
IEC-60320-1,IEC-60320-3,IEC-60799
Compliance Marking
CE, RoHS (On request, Please refer ordering code for suffix)
Elcom Data Sheet
Elcom EPC1920-R-Series Data Sheet
486 KB
