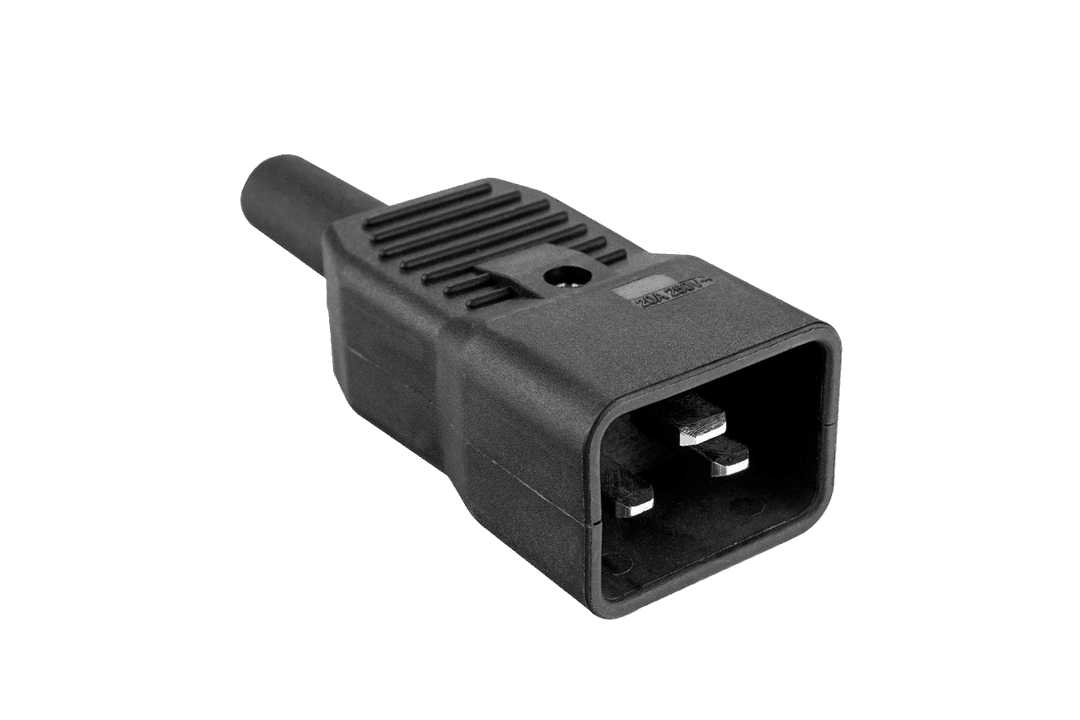

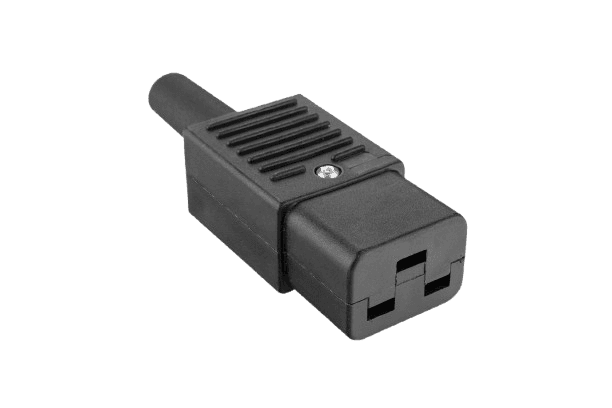

EMI-48-V2
EMI-48-V2
Specification
- Reference Standard
IEC 60320-1, CSA:C22.2 No.182.3
- Compliance Marking
CE, RoHS
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description
Rewirable Plug Connector
V/A Rating
16A 250V AC (IEC), 20A 250V AC (Extended)
Contact resistance (Initial)
10 mohms max.
Insulation resistance at 500 V DC
100 Mohms min.
H.V.Break down test (For 1minute)
2 KV AC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Terminals
Screw-type
Cable size
0.75 Sq mm min., 1.5 Sq mm max
Screw torqe
4 kg cm.
Permissible Temp. With/Without Load
0 To 70°C (IEC)
Material
Material
Parameters
Specification
Body, Cable Lock
Nylon-6, GF20%, V-2
Cable Guide
PVC
Contacts, Terminals
Brass, Nickel plating
Clamping/Terminal Screws
M.S., Zinc/Nickel Plating
Reference Standard and Approvals
Reference
Standard
and
Approvals
Parameters
Specification
Reference Standard
IEC 60320-1, CSA:C22.2 No.182.3
Compliance Marking
CE, RoHS
Data Sheet
Elcom EMI-48-V2 Data Sheet
244 KB
