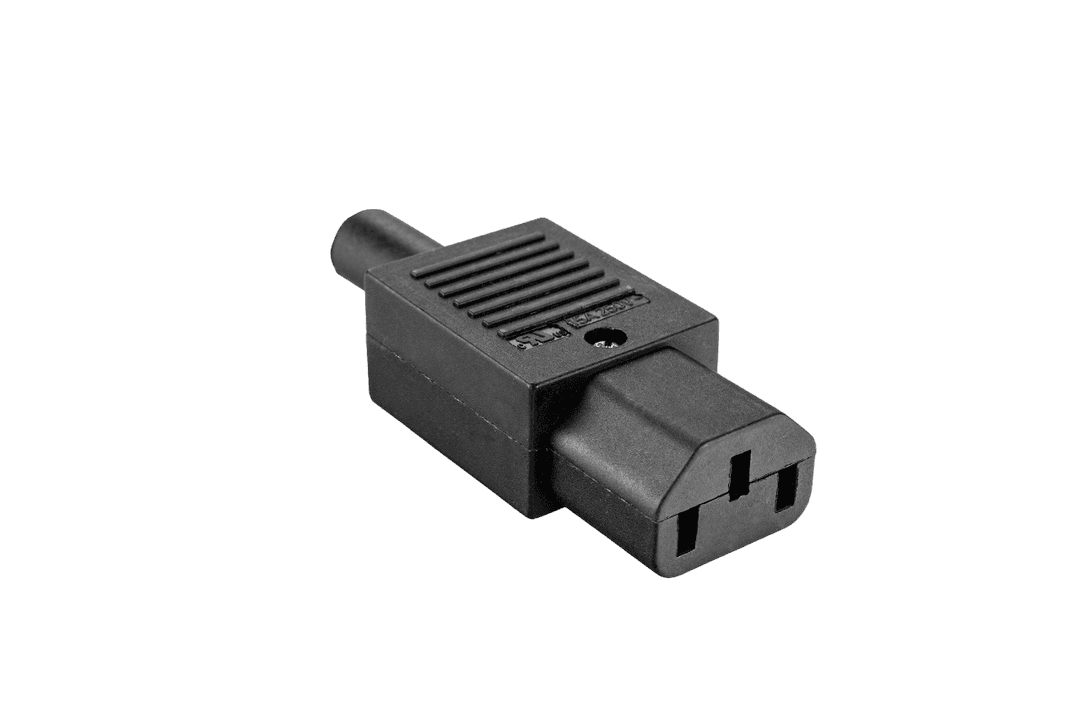

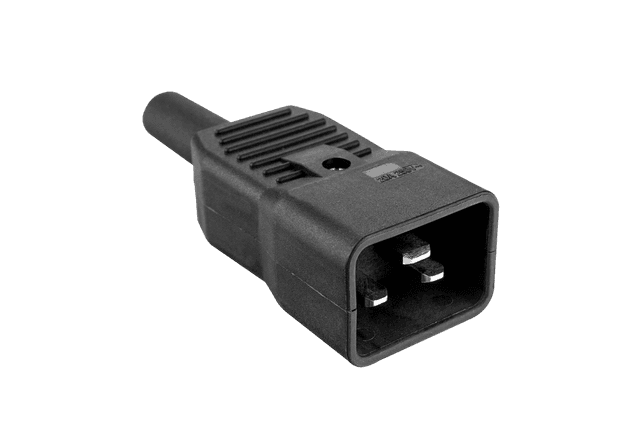

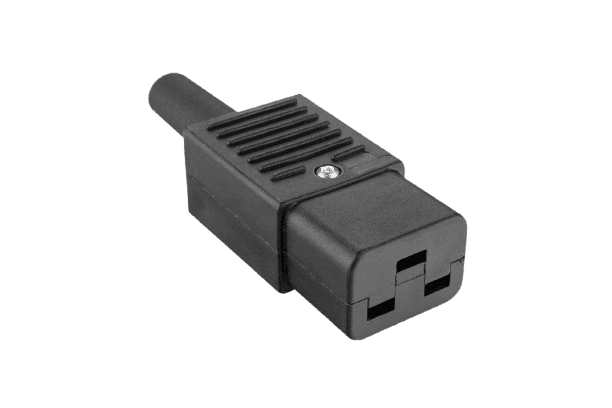

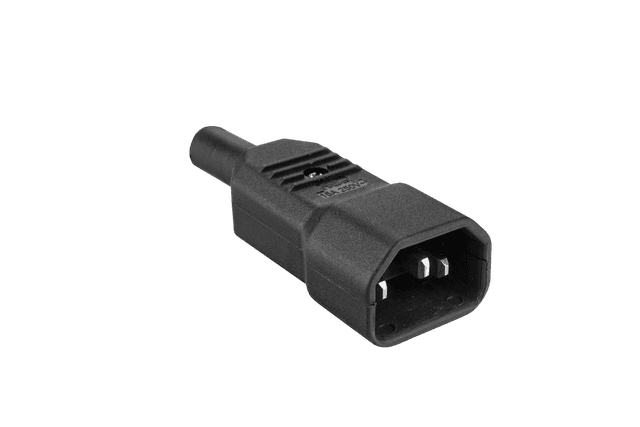

EMO-40-X (Series)
EMO-40-X
(Series)
Specification
- Reference standard
IEC 60320-1, IEC 60320-3, UL-498, CSA:C22.2 No.182.3
- Approval
VDE, cULus
- Compliance Marking
CE, RoHS
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description
Rewireable Connector
V/A Rating
10A/15A, 250VAC
Contact Resistance (Initial)
10 mohms max.
Insulation Resistance at 500 VDC
100 Mohms min
H.V.Break Down Test (For 1-Minute)
2 KVAC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Terminals
Piller-type(Wire-Insertion)
Cable size
0.75 Sq mm min.m, 1.0 Sq mm max.
Screw torqe
4 kg cm.
Permissible Temp. With/Without Load
0 To 65°C (UL){* Also available up to 125°C on request for UL only} 0 To 70°C (VDE)
Material
Material
Parameters
Specification
Body, Cable Lock
Nylon-6, GF20%, V-2
Cable Guide
PVC
Contacts, Terminals
Brass, Nickel plating
Terminal Screws
M.S., Zinc Plating
Reference Standard and Approvals
Reference
Standard
and
Approvals
Parameters
Specification
Reference standard
IEC 60320-1, IEC 60320-3, UL-498, CSA:C22.2 No.182.3
Approval
VDE, cULus
Compliance Marking
CE, RoHS
Features
Features of EMO-40-X (Series)
Features
of
EMO-40-X
(Series)
Appliance Inlets / Outlets available in wide range of current ratings.
Wide range of mounting styles and terminals to suit various design requirements.
Components available according to IEC & UL standards.
Wide range of operating temperature - up to 125 Deg Centigrade.
Pioneers of High Retention Force for the inlet, outlet components.
Data Sheet
Elcom EMO-40-X (Series) Data Sheet
317 KB
