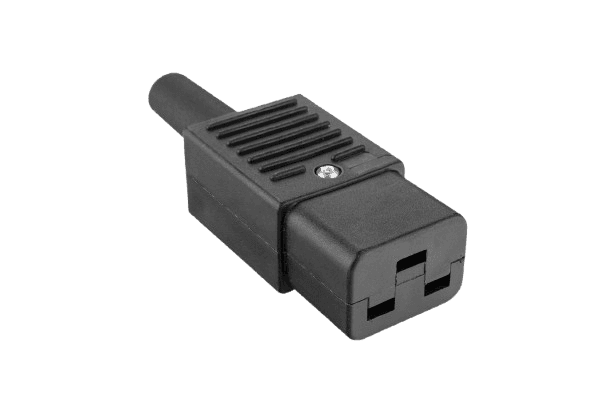

EMO-48-X(SERIES)
EMO-48-X(SERIES)
Specification
- Reference Standard
IEC 60320-1, IEC 60320-3, UL-498, CSA:C22.2 No. 182.3
- Compliance Marking
CE, RoHS
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description
Rewirable Connector
V/A Rating
16A 250V AC, 20A (Extended rating)
Contact Resistance (Initial)
10 m ohms Max
Insulation resistance at 500 V DC
100 Mohms min.
H.V.Break down test (For 1minute)
2 KVAC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Terminals
Screw Type
Cable size
0.75 Sq mm min. ,1.5 Sq mm max.
Screw torqe
5 kg cm.
Permissible Temp. With/Without Load
0 To 70°C (IEC)
Material
Material
Parameters
Specification
Body, Cable Lock
Nylon-6, GF20%, V-2
Cable Guide
PVC
Contacts-Terminals
Brass, Nickel plating
Terminal Screws
M.S.,Zinc Plating
Reference Standard and Approvals
Reference
Standard
and
Approvals
Parameters
Specification
Reference Standard
IEC 60320-1, IEC 60320-3, UL-498, CSA:C22.2 No. 182.3
Compliance Marking
CE, RoHS
Features
Features of EMO-48-X(SERIES)
Features
of
EMO-48-X(SERIES)
Appliance Inlets / Outlets available in wide range of current ratings.
Wide range of mounting styles and terminals to suit various design requirements.
Components available according to IEC & UL standards.
Wide range of operating temperature - up to 125 Deg Centigrade.
Pioneers of High Retention Force for the inlet, outlet components.
Data Sheet
Elcom EMO-48-X(SERIES) Data Sheet
243 KB
