Products>Electromechanical Components>IEC Power Entry Components>Indian socket>EMO-61-X SERIES
Specification
Electric Characteristics
Electric
Characteristics
Parameters
Specification
Product Category / Description

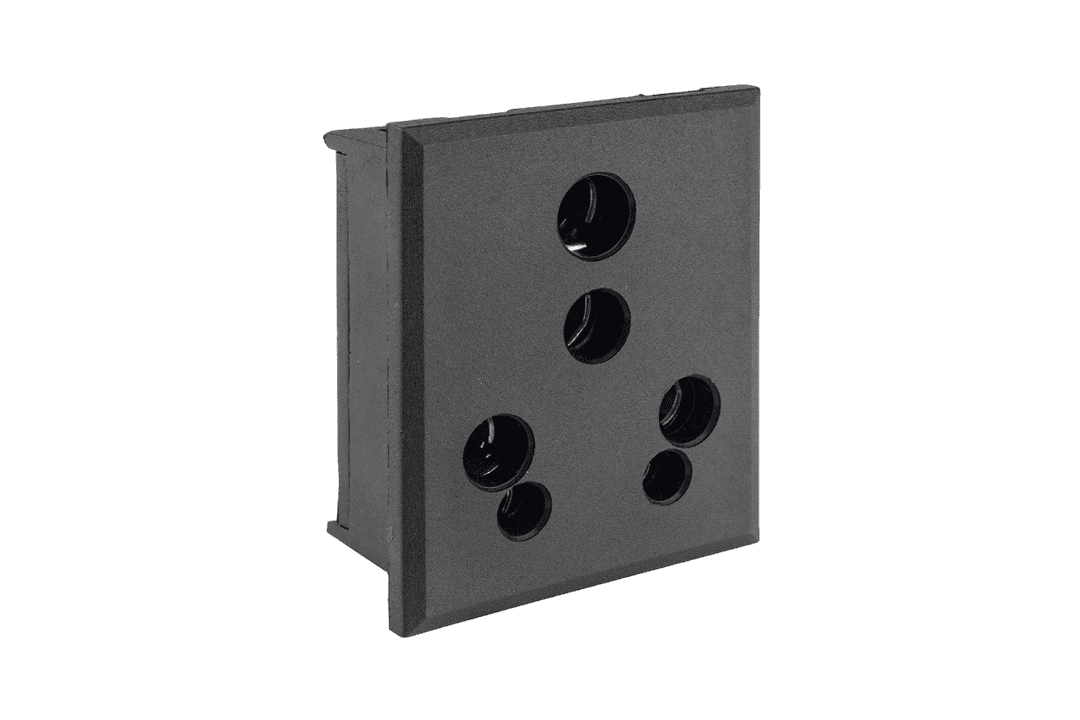

Indian Socket 6 Pin
V/A Rating
16 A & 6A 250V AC
Contact Resistance (Initial)
30m Ohms Max
Insulation Resistance At 500 V DC
100M Ohms Min.
H.V.Break Down Test. (For 1 Minute)
2 KV AC
Operating/Characteristics
Operating/Characteristics
Parameters
Specification
Mounting
Panel Snap-in type
Terminals
Solder Type
Withdrawl Force For 6A
Single pin-1.5N Min, Multi pin-50N Max.
Withdrawl Force For 16A
Single pin-2.0N Min, Multi pin-54N Max
Panel Thickness
Standard:- 0.80 - 2.00 , Other:- 2.00 - 3.00 (Available on request)
Permissible Temp. With/Without Load
0°C TO 70°C
Permissible Temp. For Soldering
270°C for 5 Sec. Max.
Material
Material
Parameters
Specification
Body
Nylon-GF
Terminals, Contacts
Brass / MS, Tin Plating
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
IS:1293, IEC-60884-1
Compliance Marking
CE, RoHS
Data Sheet
Elcom EMO-61-X SERIES Data Sheet
332 KB
