Products>Electromechanical Components>IEC Power Entry Components>Inlet>EMI-20-X (SERIES)

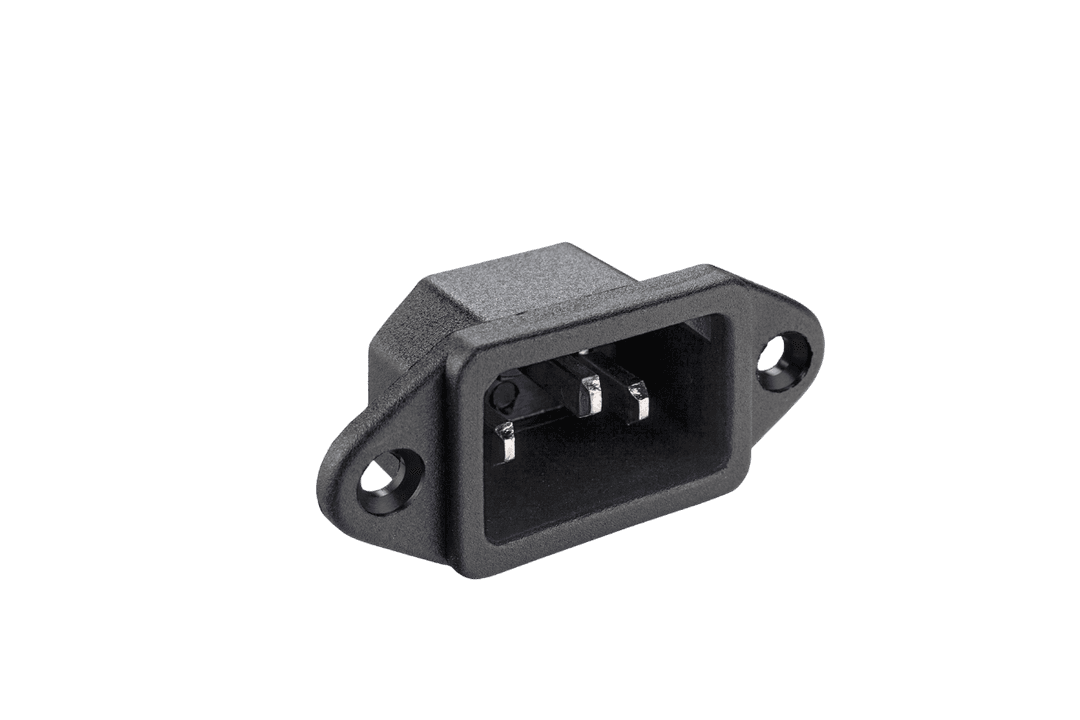

EMI-20-X (SERIES)
EMI-20-X
(SERIES)
Specification
- Reference Standard
IEC 60320-1, IEC 60320-3, UL-498, CSA : C22.2 No.182.3
- Approvals
VDE, cULus
- Compliance Marking
CE, RoHS
Specification
Electric Characteristics
Electric
Characteristics
Parameters
Specification
Product Category / Description
IEC INLET
V/A Rating
10A/15A , 250V AC
Contact Resistance (Initial)
10 mohms max
Insulation resistance at 500 V DC
1000 Mohms min
H.V.Break Down Test (For 1-Minute)
2 KVAC
Operating/Characteristics
Operating/Characteristics
Parameters
Specification
Mounting
Panel, Screw-type
Terminals
Solder-type / Fast on 2.8/4.8/6.3
Permissible Temp. With/Without Load
0 To 65°C (UL){* Also available up to 125°C on request for UL only} 0 To 70°C (VDE)
Permissible Temp. For Soldering
270°C for 5 Sec. Max
Material
Material
Parameters
Specification
Body
Nylon-6, GF20%, V-2
Terminals
Brass, Tin plating
Contacts
Brass, Nickel plating
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
IEC 60320-1, IEC 60320-3, UL-498, CSA : C22.2 No.182.3
Approvals
VDE, cULus
Compliance Marking
CE, RoHS
Features
Features of EMI-20-X (SERIES)
Features
of
EMI-20-X
(SERIES)
Appliance Inlets / Outlets available in wide range of current ratings
Wide range of mounting styles and terminals to suit various design requirements.
Components available according to IEC & UL standards.
Wide range of Safety approvals from UL,CSA,VDE,CE etc
Wide range of operating temperature - up to 125 Deg Centigrade.
Data Sheet
Elcom EMI-20-X (SERIES) Datasheet
327 KB
