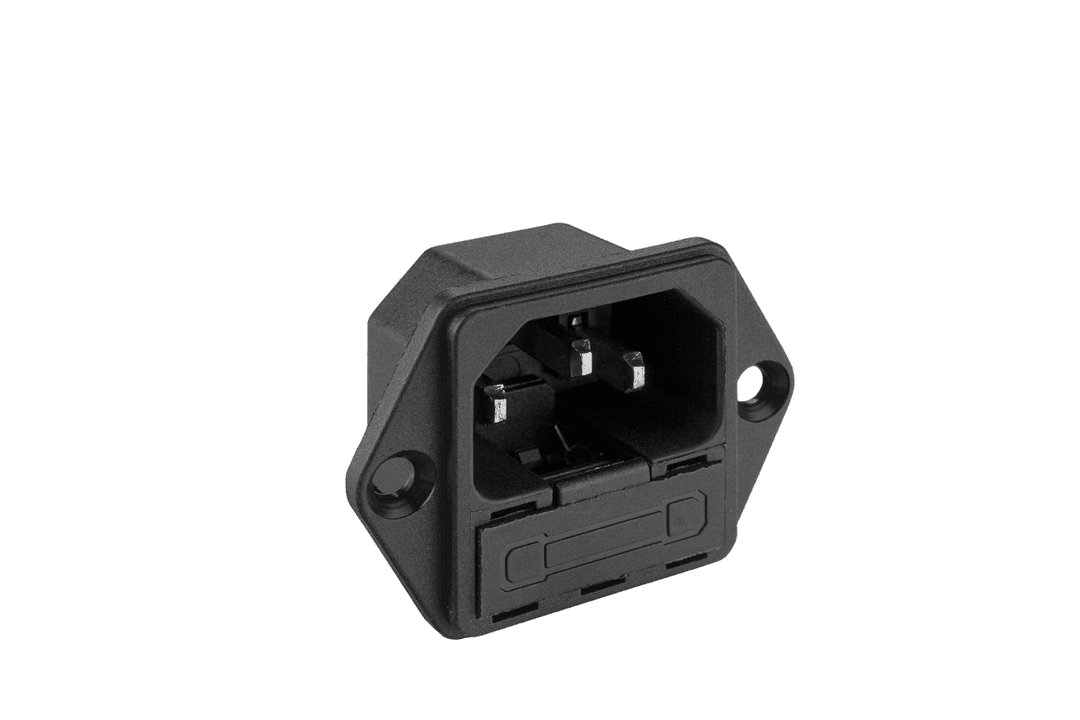

EMI-21-X
EMI-21-X
Specification
- Reference Standard
IEC 60320-1, IEC 60127-6, CSA : C22.2 No.60320-1-11
- Approvals
cCSAus
- Compliance Marking
CE, RoHS
Specification
Electric Characteristics
Electric
Characteristics
Parameters
Specification
Product Category / Description
IEC INLET
V/A Rating
10A 250V AC
Contact Resistance (Initial)
20 mohms max.
Insulation Resistance At 500 V DC
1000 Mohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Operating/Characteristics
Operating/Characteristics
Parameters
Specification
Mounting
Panel, Screw-type
Terminals
Solder-type / Fast-On 4.8
Permissible Temp. With/Without Load
-25°C To 70°C
Permissible Temp. For Soldering
270°C for 5 Sec. Max.
Material
Material
Parameters
Specification
Body
Nylon-6, GF20%, V-2
Terminals
Brass, Tin/Nickel plating
Contacts
Brass/Copper, Tin/Nickel plating
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
IEC 60320-1, IEC 60127-6, CSA : C22.2 No.60320-1-11
Approvals
cCSAus
Compliance Marking
CE, RoHS
Features
Features of EMI-21-X
Features
of
EMI-21-X
Appliance Inlets / Outlets available in wide range of current ratings
Wide range of mounting styles and terminals to suit various design requirements.
Components available according to IEC & UL standards.
Wide range of Safety approvals from UL,CSA,VDE,CE etc
Wide range of operating temperature - up to 125 Deg Centigrade.
Data Sheet
Elcom EMI-21-X Datasheet
327 KB
