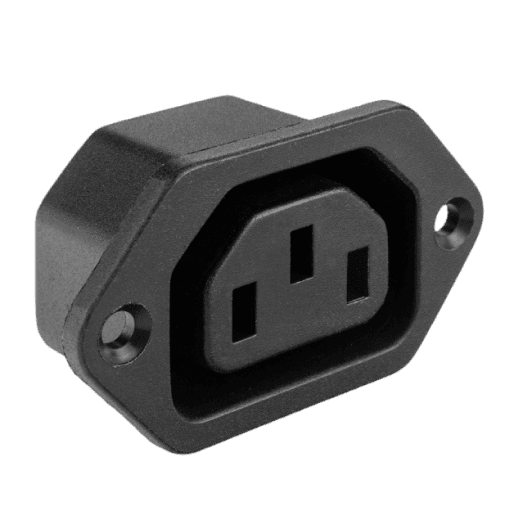

EMO-21-X
EMO-21-X
Specification
- Reference Standard
IEC 60320-1, IEC 60320-3, UL-498, CSA:C22.2 No.182.3
- Approvals
VDE, cULus
- Compliance Marking
CE, RoHS
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description
IEC OUTLET
V/A Rating
10A/20A 250V AC
Contact Resistance (Initial)
10 m ohms Max
Insulation Resistance at 500 VDC
1000 M ohms Min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Mounting
Panel, Screw-type
Terminals
Solder-type
Withdrawal force
3.5 to 5.0 kg.
Panel thickness (Max.)
--
Permissible Temp. With/Without Load
0 To 65°C (UL){* Also available up to 125°C on request for UL only} 0 To 70°C (VDE)
Permissible Temp. For Soldering
270°C for 5 Sec. Max.
Material
Material
Parameters
Specification
Body
Nylon-6, GF20%, V-2
Contcts, Terminals
Brass, Tin plating
Reference Standard and Approvals
Reference
Standard
and
Approvals
Parameters
Specification
Reference Standard
IEC 60320-1, IEC 60320-3, UL-498, CSA:C22.2 No.182.3
Approvals
VDE, cULus
Compliance Marking
CE, RoHS
Features
Features of EMO-21-X
Features
of
EMO-21-X
Appliance Inlets / Outlets available in wide range of current ratings
Wide range of mounting styles and terminals to suit various design requirements.
Components available according to IEC & UL standards.
Wide range of Safety approvals from UL,CSA,VDE,CE etc
Wide range of operating temperature - up to 125 Deg Centigrade.
Pioneers of High Retention Force for the inlet, outlet components.
Data Sheet
EMO-21-X Data Sheet
318 KB
