Specification
Parameter
Parameter
Parameters
Specification

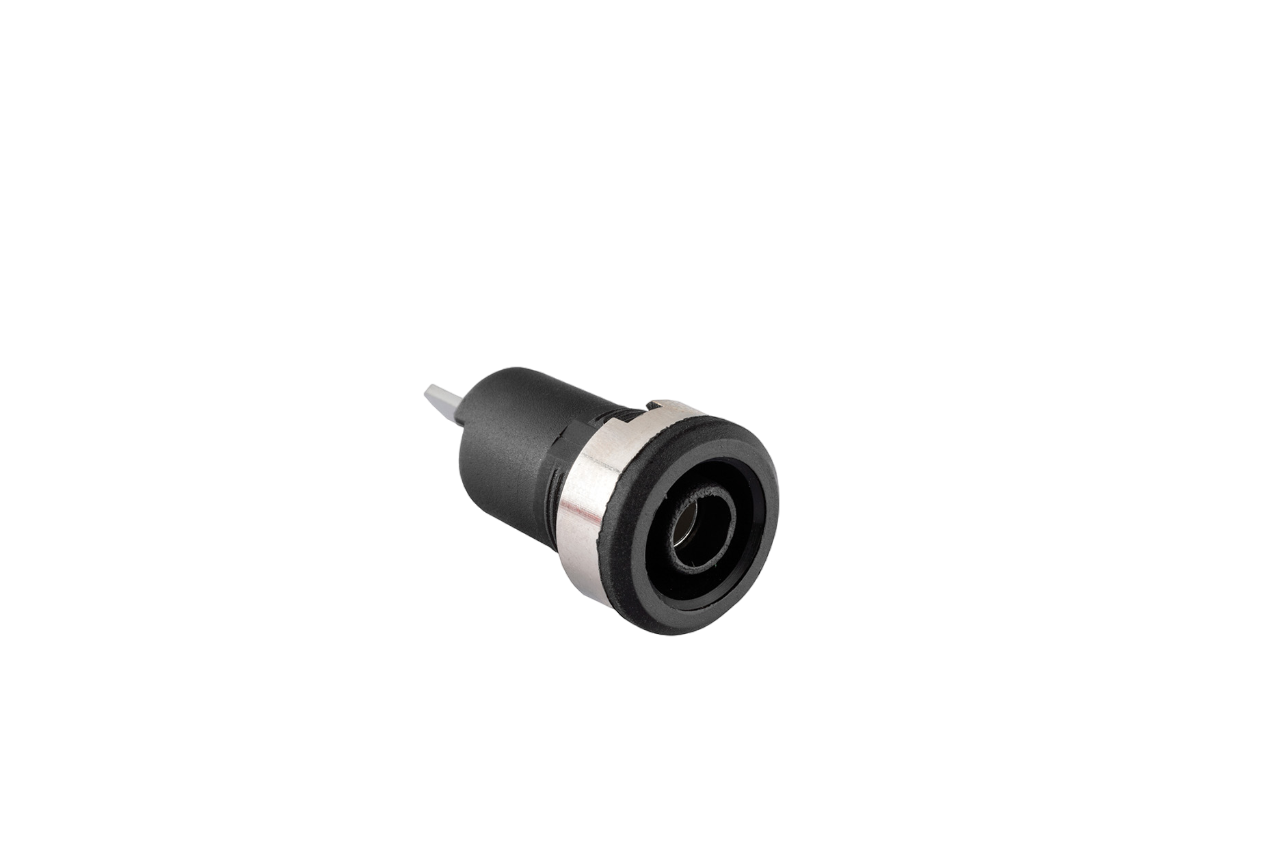

Product Category/Description
Socket
Mounting Style
Panel Mount, Screw Type
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Plug Size
Ø4.00
V/A Rating
10A, 250VAC
Insulation Resistance
100 M ohms Min.
H.V.Break Down Test (For 1-Minute)
1 KVAC
Contact Resistance (Initial)
10 mohms max
Operating/ Functional Characteristics
Operating/
Functional
Characteristics
Parameters
Specification
Permissible Temperature
-20°c to +85°c
Mounting
Panel, Screw-type
Terminals
Solder-type/Fast-on
Material
Material
Parameters
Specification
Body
Polypropylene/Nylon
Colour
As per requirement
Contacts/Terminals
Brass,Tin plating
Reference Standards/ Approvals
Reference
Standards/
Approvals
Parameters
Specification
Reference Standards
JSS 52710
CE Marking
CE, RoHS ( On request )
Download PDF
Elcom BS-210 Data Sheet
100 KB
