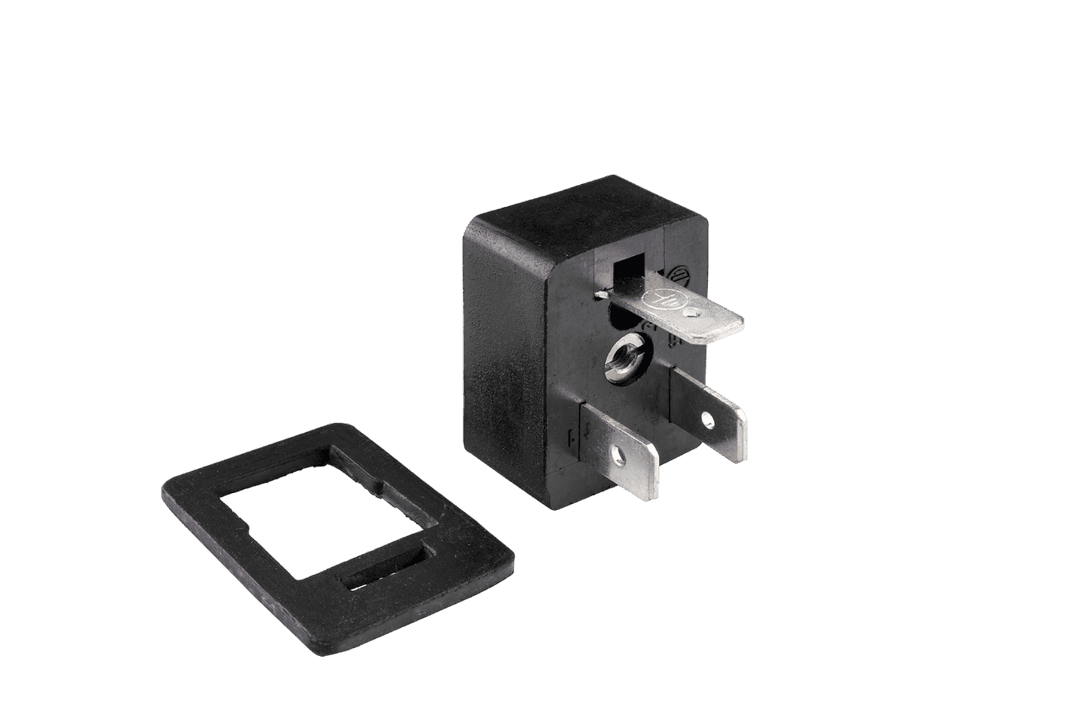

MER-2 Slash PF-V (Approved Series)
MER-2
Slash
PF-V
(Approved
Series)
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Connector Type
Solenoid Connector Style B Rectangular Plug
V/A Rating
16 A 250 VAC
Contact Resistance (Initial)
15 m ohms max.
Insulation Resistance At 100 V DC
100 M ohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Connector Mounting
Screw Mounting
Terminals
Solder Type
Permissible Temp. With/Without Load
-40°C to 120°C
Material
Material
Parameters
Specification
Body
Nylon-6 GF V2
Rubber Gasket
Silicone
Terminals / Contacts
Brass, Tin Plated
Mounting Screw
Brass, Nickel Plated
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standard
DIN-43650, ISO 4400, EN-175301-803
Approvals
DVE
Download PDF
MER-2-Slash-PF-V-Approved-Series
369 KB
