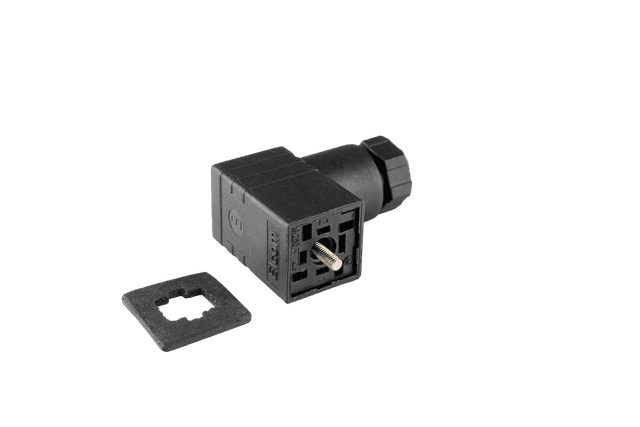

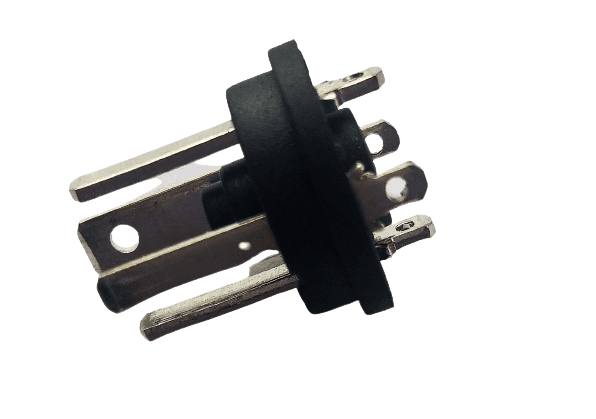

MEM-2 & 3 Slash PR-8-V (Approved Series)
MEM-2
&
3
Slash
PR-8-V
(Approved
Series)
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Connector Type
Solenoid Connector Style C Type Round Plug
V/A Rating
6 A 250 VAC
Contact Resistance (Initial)
15 m ohms max.
Insulation Resistance At 100 V DC
100 M ohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Connector Mounting
Screw Type
Terminals
Solder Type
Permissible Temp. With/Without Load
-40°C to 125°C
Material
Material
Parameters
Specification
Body
Nylon-6, GF, V-2
Contacts
Copper alloy, Tin Plated
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standard
DIN-43650, ISO 4400, EN-175301-803
Approvals
cCSAus
Download PDF
MEM-2-3-Slash-PR-8-V-Approved-Series 5
332 KB
