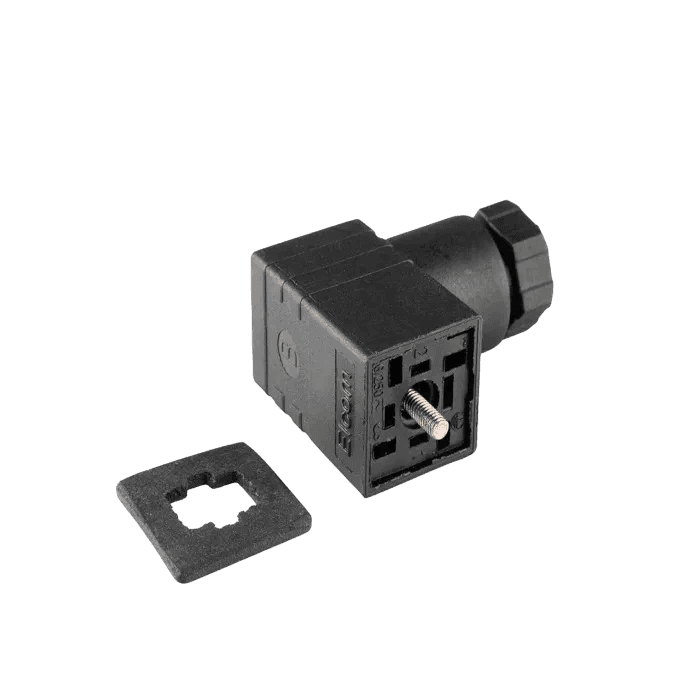

MEM-207 & 307 Slash S-X (Non Approved Series)
MEM-207
&
307
Slash
S-X
(Non
Approved
Series)
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Connector Type
Solenoid Connector (Micro Version)
V/A Rating
6 A 250 VAC
Contact Resistance (Initial)
15 m ohms max.
Insulation Resistance At 100 V DC
100 M ohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Connector Mounting
Screw Type
Terminals
Screw Type
Permissible Temp. With/Without Load
-0°C to 90°C
Material
Material
Parameters
Specification
Body
Nylon-6, GF(Black/Grey)
Rubber Gasket
Nitrile
Contacts
Brass, Tin Plated
Terminal Screws
Brass, Nickel Plated
Mounting Screws
M.S, Zinc Plating With Yellow Passivation
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standard
DIN-43650, ISO 4400, EN-175301-803
Download PDF
MEM-207-307-Slash-S-X-Non-Approved-Series 2
394 KB
