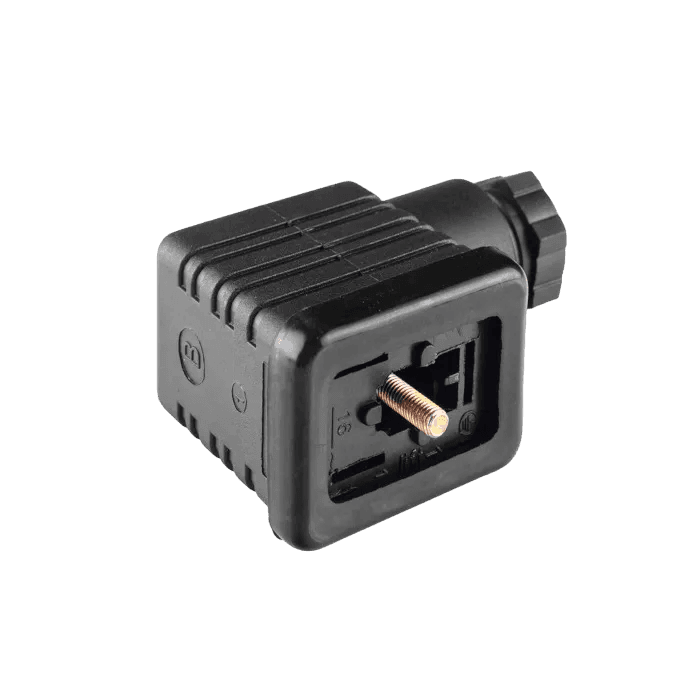

MER-209 Slash S-V & 209 Slash SL(X)-V (Approved Series)
MER-209
Slash
S-V
&
209
Slash
SL(X)-V
(Approved
Series)
Specification
Electrical characteristics
Electrical
characteristics
Parameters
Specification
Connector Type
Solenoid Connector Style B (Mini Version)
V/A Rating (Non-illuminated)
16 A 250 VAC
Voltage Rating (illuminated)
110 VAC, 120 VAC, 230 VAC, 240 VAC, 12 VDC, 24 VDC, 48 VDC, 110 VDC, 220 VDC, 330 VDC
Contact Resistance (Initial)
15 m ohms max.
Insulation Resistance At 100 V DC
100 M ohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Connector Mounting
Screw Type
Terminals
Screw Type
Permissible Temp. With/Without Load
-40°C to 120°C
Material
Material
Parameters
Specification
Body
Non-illuminated - Nylon-6 GF(Black/Grey), Illuminated - Polycarbonate(Translucent)
Rubber Gasket
Silicone
Contacts
Brass, Tin Plated
Terminals(Square Barrel)
Brass, Tin Plated
Terminal Screws
Brass, Nickel Plated
Mounting Screws
M.S, Zinc Plating With Trivalent Blue Passivation
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standard
DIN-43650, ISO 4400, EN-175301-803
Approvals
DVE
Download PDF
MER-209-Slash-S-V-209-Slash-SLX-V-Approved-Series
501 KB
