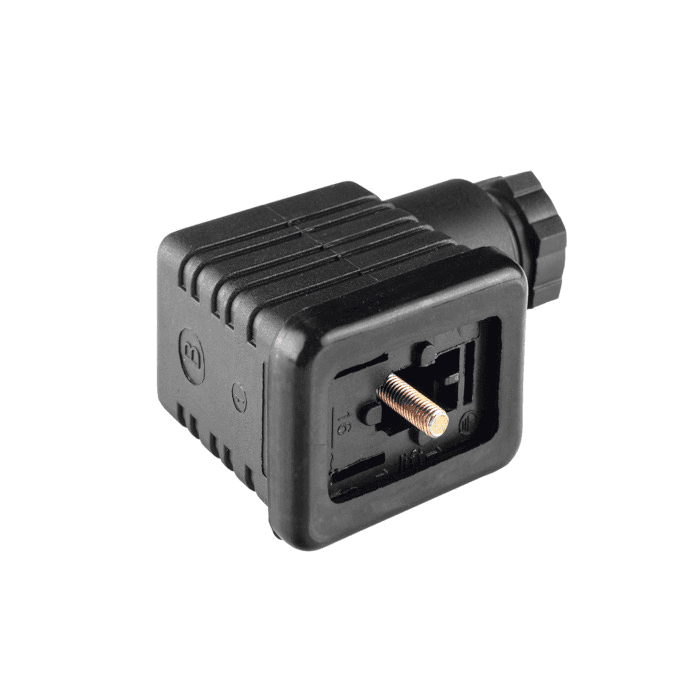

MER-209 Slash SL-24V-IN-BPV (Non Approved)
MER-209
Slash
SL-24V-IN-BPV
(Non
Approved)
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Connector Type
Solenoid Connector Style B (Mini Version)
V/A Rating (illuminated)
24 VDC
Contact Resistance (Initial)
15 m ohms max.
Insulation Resistance At 100 V DC
100 M ohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Connector Mounting
Screw Mounting
Terminals
Screw Type
Permissible Temp. With/Without Load
0°C to 90°C
Material
Material
Parameters
Specification
Body
Illuminated - Polycarbonate(Translucent)
Rubber Gasket
Nitrile
Contacts
Phospher Bronze, Tin Plated
Terminals(Square Barrel)
Brass, Tin Plated
Terminal Screws
Brass, Nickel Plated
Mounting Screws
M.S, Zinc Plating With Yellow Passivation
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standard
DIN-43650, ISO 4400, EN-175301-803
Download PDF
MER-209-Slash-SL-24V-IN-BPV-Non-Approved 1
393 KB
