Products>Electromechanical Components>Switches>Push button switch>PBS- SERIES
esrseries

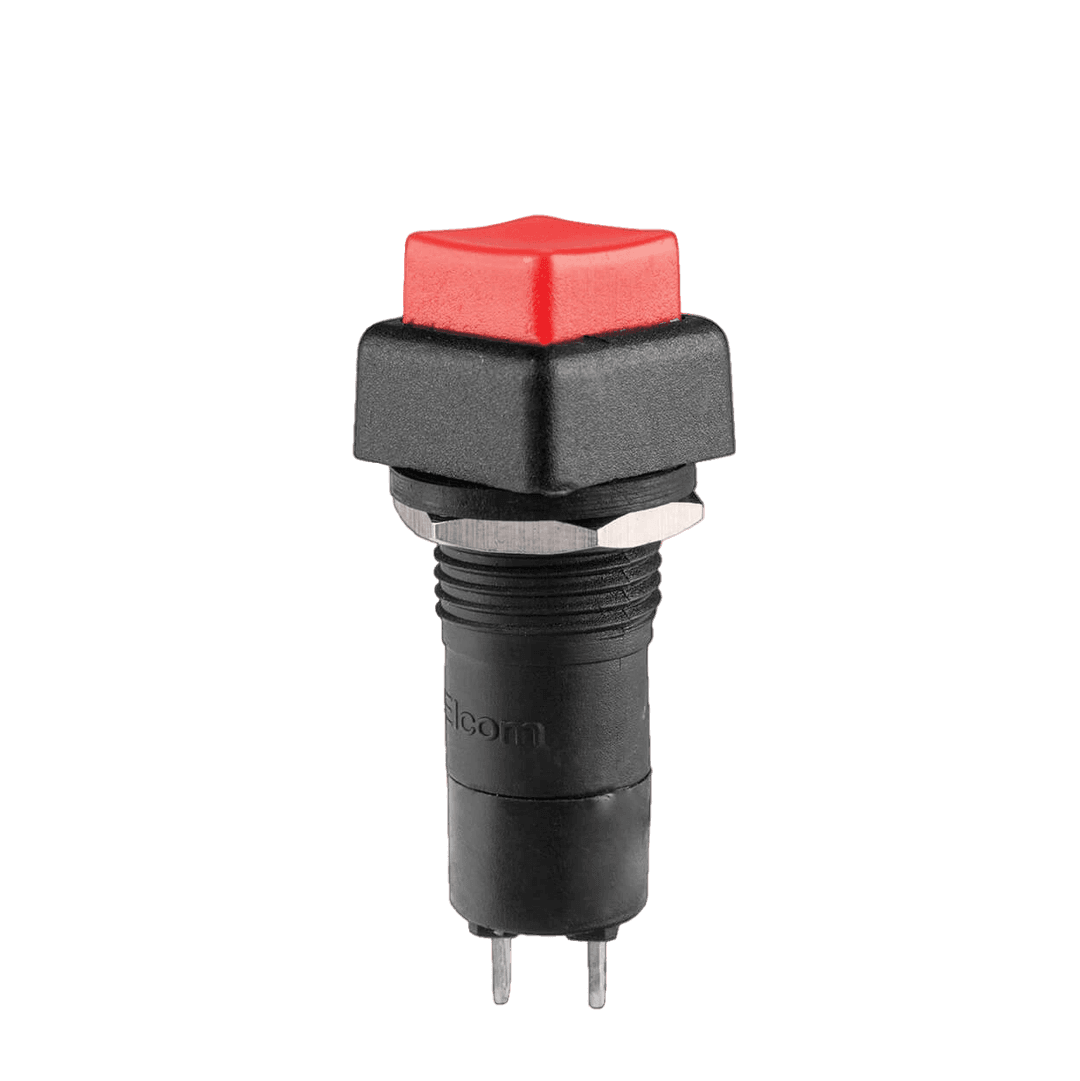

PBS-
SERIES

Request a Quote
Specification
certiicon1
certiicon1
  • Reference Standard

    IEC-61058-1

  • Compliance Marking

    CE, ROHS

Specification
starIcon

Electrical
Characteristics

Parameters
Specification
Type
Momentary/Latched, SPST
V/A Rating
3.5VDC,480mA 3A 250V AC
Contact Resistance(Initial)
10 m Ohms. Max.
Insulation Resistance at 500 V DC
100 M Ohms Min.
H.V.Break Down Test(For 1-Minute)
1 KV AC
Mounting
Panel, Screw-type
Terminals
Solder-type
Electrical Life
10,000 Cycles.
Mechanical Life
50,000 Cycles.
starIcon

Operating/Functional
Characteristics

Parameters
Specification
With/Without Load
-25°C to +85°C
For Soldering
270°C for 5 Sec Max.
starIcon

Material

Parameters
Specification
Body
Nylon
Contact housing
Nylon
Actuator
Nylon for PBS-1Series
Actuator
Nylon/Delrin for PBS-2 Series
Cap
ABS
Contacts, Terminals
Copper, Silver plated
starIcon

Reference
Standard

Parameters
Specification
Reference Standard
IEC-61058-1
Compliance Marking
CE, RoHS (On Request)
Download PDF
PDF
PBS- Series Data Sheet
493 KB
download
