Products
>
Electromechanical Components
>
Switches
>
Pushcoder Switch
>

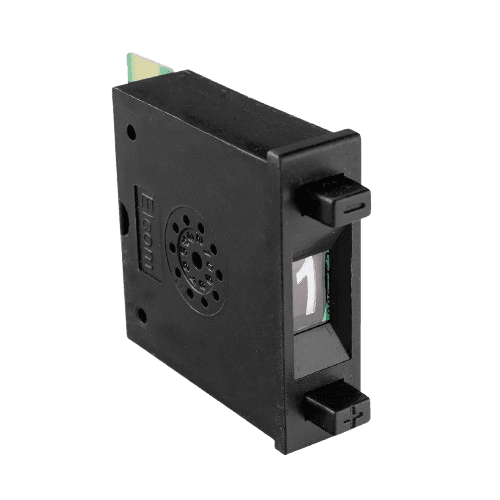

PCS-30 Series
PCS-30
Series
Request a Quote
Reference Standard
IEC 1020-5
Specification
Electrical
Characteristics
Parameters
Specification
V/A Rating ( Standard )
50 VAC / 28 VDC 100 mA
Continuous Current
1 A Max
Insulation Resistance at 500 V DC
100 Mega Ohms Min.
Contact Resistance ( Initial )
200 m ohm Max.
High Voltage Test ( For 1 Minute)
500 V AC
Panel Thickness
0.80 - 2.00
Mounting
Panel With Snap
Life ( With Load)
10,000 Cycles Minimum.
Operating
And
Functional
Characteristics
Parameters
Specification
With / Without Load
-25°C to +85°C
For Soldering
270°C, 5 Sec Max.
Material
Parameters
Specification
Housing, End Brackets
Engineering Thermo-plastic
Dummy spacer
Engineering Thermo-plastic
P.C.B.
Glass Epoxy, Gold Plated
Download PDF
PDF
PCS-30-Series Data Sheet
472 KB
download
