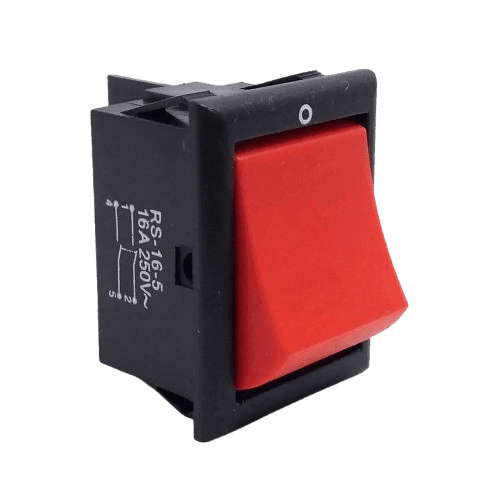

RS-6-5/IRS-6-5 RS-16-5/IRS-16-5-SERIES
RS-6-5/IRS-6-5
RS-16-5/IRS-16-5-SERIES
Specification
- Reference Standard:
IEC-61058-1, UL-1054
- Compliance Marking:
CE, RoHS (On Request)
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Type
Rocker switch, DPST
Panel Thickness
Refer Panel cut out Table
V/A Rating for RS-6-5/IRS-6-5
6A,250VAC
V/A Rating for RS-16-5/IRS-16-5
16A,250VAC
Contact Resistance(Initial)
10 mOhms. Max
Insulation Resistance at 500 V DC
100 MOhms Min
H.V.Break Down Test(For 1-Minute)
1.5 KV AC
Mounting
Snap-in.
Terminals
Soldering/Fast on, 6.30 x 0.80
Electrical Life
10,000 Cycles Min
OperatingAnd-Functional-Characteristics
OperatingAnd-Functional-Characteristics
Parameters
Specification
With/Without Load
-25°C to +85°C
For Soldering
270°C for 5 Sec Max.
Material
Material
Parameters
Specification
Body
Nylon
Knob
Nylon/Polycarbonate
Knob
illuminated : Red, Green, Amber
Knob
Non-illuminated : Black, Red,Green
Terminals
Brass, Tin Plating.
Contacts
Silver / Copper, Silver Plating
Dustproof Cap
Silicone
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standard
IEC-61058-1, UL-1054
Compliance Marking
CE, RoHS (On Request)
Features
Features of RS-6-5/IRS-6-5 RS-16-5/IRS-16-5-SERIES
Features
of
RS-6-5/IRS-6-5
RS-16-5/IRS-16-5-SERIES
Range available in various electrical configurations like SPST, DPST, DPDT etc.
Rockers available in various colours including illuminations.
Gold plated elements also available.
Availability in Fast-on terminal compatibility
Data Sheet
RS-6-5/IRS-6-5 RS-16-5/IRS-16-5-Series Data Sheet
910 KB
