ERS-114M SERIES

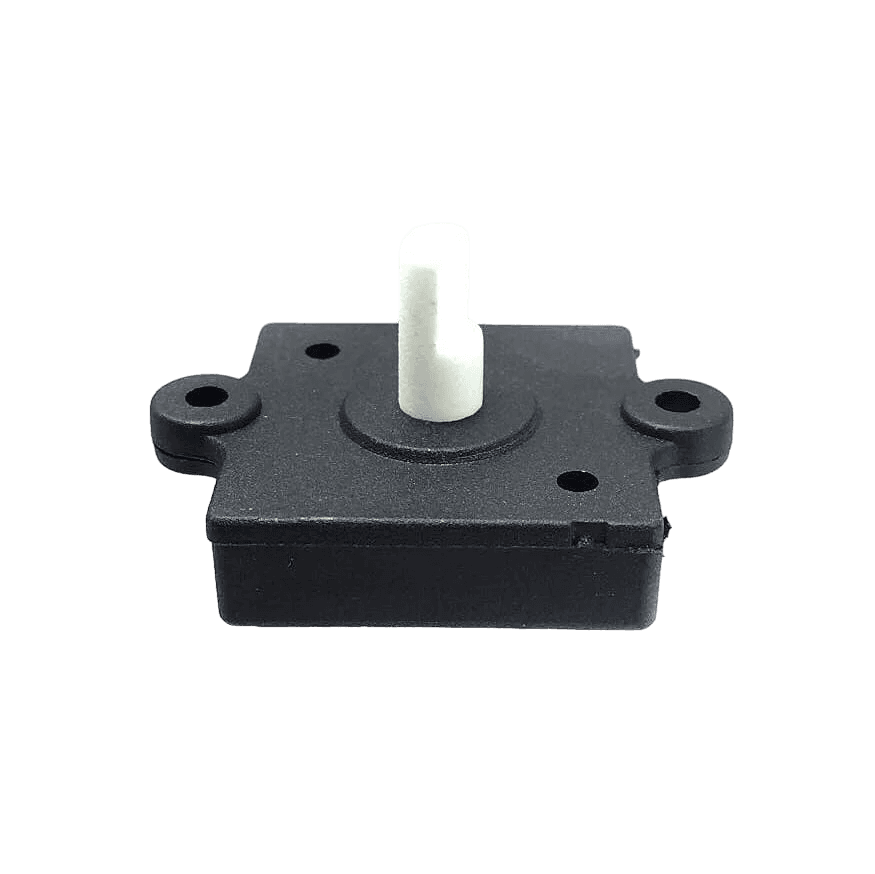

ERS-114M
SERIES
Specification
- Reference Standard
IEC-61058-1, UL-1054
- Compliance Marking
CE, RoHS ( On Request )
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Type And Function
Rotary Switch
V/A Rating
4A, 250VAC / 125VAC
Contact Resistance(Initial)
20 m Ohms Max.
Insulation Resistance at 500 V DC
1000 M Ohms Min
H.V.Break Down Test(For 1-Minute)
1 KV AC
Operating/Functional Characteristics
Operating/Functional
Characteristics
Parameters
Specification
Mounting
Chassis With Screw
Terminals
Push-in type, 0.80 thick Min.
Electrical Life
10,000 Cycles/Pole
Permissible Temp.With/Without Load
-25°C TO +85°C
Permissible Temp For Soldering
270°C for 5 Sec. Max.
Material
Material
Parameters
Specification
Body
Nylon-GF,Nylon-GF,V-2(for Switch With FR Grade)
Craft
Nylon-GF/Nylon-GF,V-2(for Switch With FR Grade), White
Current Carrying Parts
Copper alloy,Nickel Plated
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standard
IEC-61058-1, UL-1054
Compliance Marking
CE, RoHS ( On Request )
FEATURES
Tailored precision and compliance
Tailored
precision
and
compliance
Data Sheet
Elcom ERS-114M Series Data Sheet
249 KB
