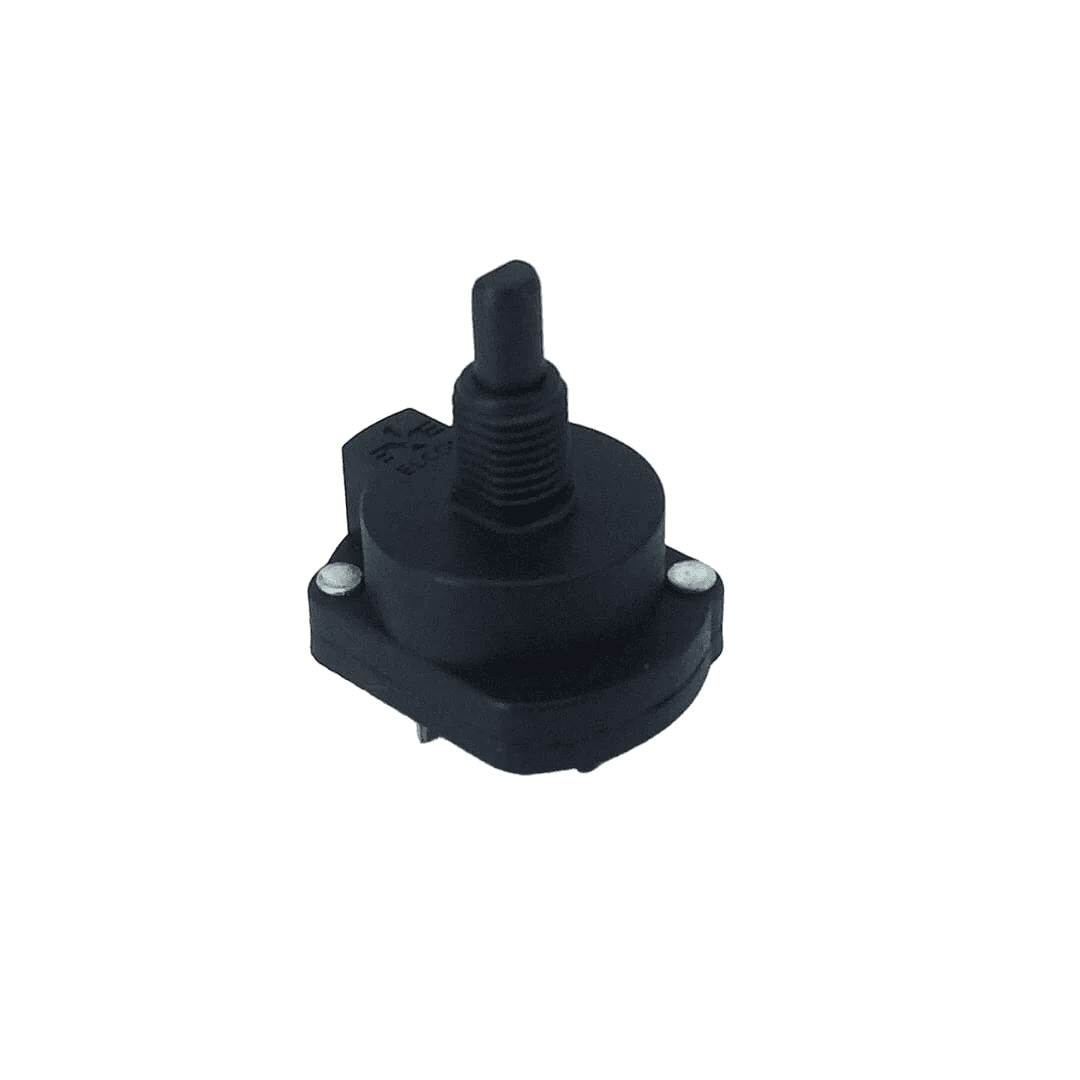

ERS-5
ERS-5
Specification
- Reference Standard
IEC-61058-1
- Compliance Marking
CE, RoHS ( On Request )
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Type And Function
Rotary Switch
V/A Rating
150mA 250 V AC
Panel Thickness
3.0 Max
Contact Resistance(Initial)
<20 mohms
Insulation Resistance at 500 V DC
>100 Mohms Min.
H.V.Break Down Test(For 1-Minute)
1.5 KV AC
Operating/Functional Characteristics
Operating/Functional
Characteristics
Parameters
Specification
Mounting
Panel with Nut
Terminals
Solder-type / PCB-type
Electrical Life
10,000 Cycles Min/Pole
Permissible Temp.With/Without Load
-25°C TO +85°C
Permissible Temp For Soldering
270°C for 5 Sec. Max.
Material
Material
Parameters
Specification
Rotor Housing
Nylon, GF or Nylon, GF, V-2(For FR Grade Switch)
Contact Housing
Nylon, GF or Nylon, GF, V-2(For FR Grade Switch)
Rotor
Nylon, GF or Nylon, GF, V-2(For FR Grade Switch)
Contacts & Terminal
Copper Alloy,Silver Plated
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
IEC-61058-1
Compliance Marking
CE, RoHS ( On Request )
Data Sheet
Elcom ERS-5 Data Sheet
432 KB
