Products>EMI EMC Products>DC Filter>EA01 DC Filter
esrseries
  • image0

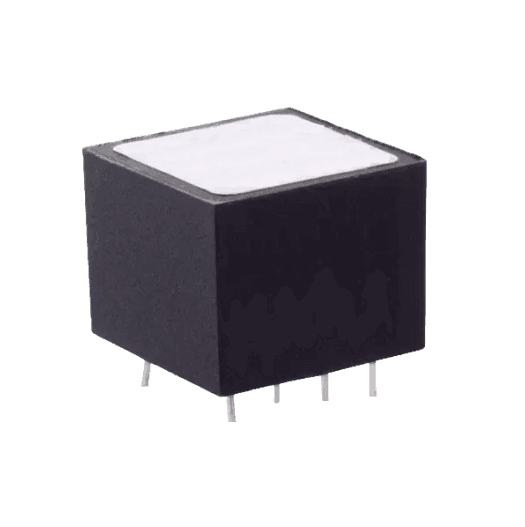

EA01
DC
Filter

Request a Quote
Specification
certiicon1
certiicon1
  • Reference Standard

    Standard EN60939-3:2015 & EN60939-2:2005, CSA C22.2 NO. 8-13, UL 1283(7th Edition)

  • Compliance Marking

    CE, RoHS

Specification
starIcon

Technical
Specifications

Parameters
Specification
Operating voltage
12 VDC
Current rating
6A
Voltage drop
1 Volt max.
High potential test voltage
+,- to E 1500VAC
Insulation resistance
≥ 300 MΩ @ 500VDC (+,- to E)
Operating temperature
40°c /-25°c +85°c
starIcon

Safety
Approvals

Parameters
Specification
CE marking
Yes
Features

Features
of
EA01
DC
Filter

  • Plastic housing with good aesthetic.

  • Compact PCB-mountable design.

  • All filters provide high attenuation performance.

  • Input and output connection through soldering pins.

Benefits

Benefits
Of
EA01
DC
Filter

  • Cost effective solution.
  • Filters available in medical version without capacitor to earth.
  • Input and output connection through soldering pins.
  • Application - Modems, Network Routing Equipment, Servers, Ethernet Hubs, Base Stations, Power Supplies, Photovoltaic Inverters, DC Motor Drives, DC Chargers, Frequency Inverters, Energy Systems
