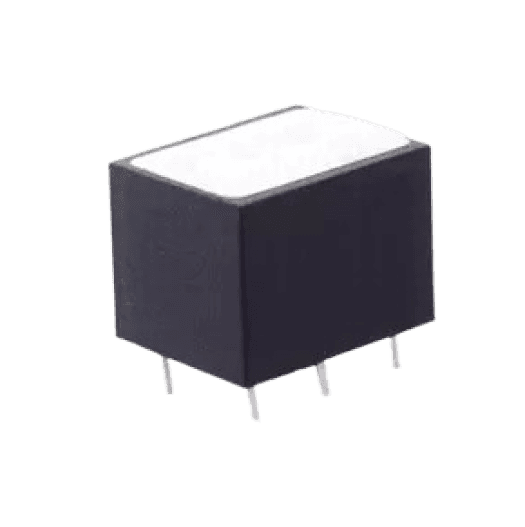

EA02 DC Filter
EA02
DC
Filter
Specification
- Reference Standard
Standard EN60939-3:2015 & EN60939-2:2005, CSA C22.2 NO. 8-13, UL 1283(7th Edition)
- Compliance Marking
CE, RoHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
12 VDC
Current rating
6A
Voltage drop
1 Volt max.
High potential test voltage
+,- to E 1500VAC
Insulation resistance
≥ 300 MΩ @ 500VDC (+,- to E)
Operating temperature
40°c /-25°c +85°c
Safety Approvals
Safety
Approvals
Parameters
Specification
CE marking
Yes
Features
Features of EA02 DC Filter
Features
of
EA02
DC
Filter
All filters compliance to EN60939-3:2015 & EN60939- 2:2005 standards.
Plastic housing with good aesthetic.
With surge suppressor filters also available.
Input and output connection through soldering pins.
Benefits
Benefits Of EA02 DC Filter
Benefits
Of
EA02
DC
Filter
- Elcom Provides Cost effective solution.
- Our Filters are high reliable.
- Compact PCB-mountable design.
- Application - Modems, Network Routing Equipment, Servers, Ethernet Hubs, Base Stations, Power Supplies, Photovoltaic Inverters, DC Motor Drives, DC Chargers, Frequency Inverters, Energy Systems
Download PDF
EA02 DC Filter Data Sheet
274 KB
