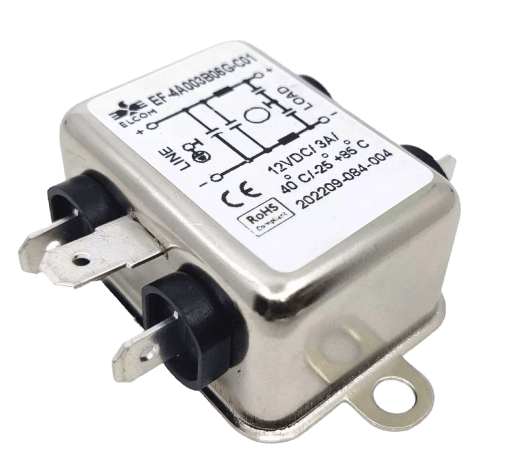

EC01
DC
Filter









Specification
certiicon1
certiicon1
  • Reference Standard

    EN60939-3:2015 & EN60939-2:2005, CSA C22.2 NO. 8-13, UL 1283(7th Edition)

  • Compliance Marking

    CE, RoHS

Specification
starIcon

Technical
Specification

Parameters
Specification
Operating voltage
12 VDC
Current rating
3A
Voltage drop
1 Volt max.
High potential test voltage
+,- to E 1500VAC
Insulation resistance
≥ 300 MΩ @ 500VDC (+,- to E)
Operating temperature
40°c /-25°c +85°c
starIcon

Safety
Approvals

Parameters
Specification
CE marking
Yes
Features

Features
of
EC01
DC
Filter

  • All filters provide high attenuation performance.

  • All filters compliance to EN60939-3:2015 & EN60939- 2:2005 standards.

  • Easy and fast chassis mountable filter in deep drawn metal can with compact size.

  • CRCA metal can with nickel plating provides good aesthetic and corrosion protection.

Download PDF
PDF
EC01 DC Filter Data Sheet
313 KB
