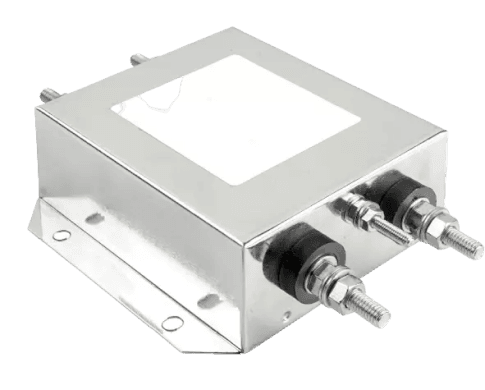

EC10 DC Filter
EC10
DC
Filter
Specification
- Reference Standard
EN60939-3:2015 & EN60939-2:2005, CSA C22.2 NO. 8-13, UL 1283(7th Edition)
- Compliance Marking
CE, RoHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
48 VDC
Current rating
1A to 6 Amp
Voltage drop
1 Volt max.
High potential test voltage
+,- to E 1500VAC
Insulation resistance
≥ 300 MΩ @ 500VDC (+,- to E)
Operating temperature
40°c /-25°c +85°c
Safety Apprpvals
Safety
Apprpvals
Parameters
Specification
CE Marking
Yes
Features
Features of EC10 DC Filter
Features
of
EC10
DC
Filter
Filters available in single stage and double stage
All filters provide high attenuation performance
Two stage filters designed for noisy application requiring excellent filter performance.
All filters compliance to EN60939-3:2015 & EN60939-2:2005 standards.
Benefits
Benefits Of EC10 DC Filter
Benefits
Of
EC10
DC
Filter
- Elcom filters are High reliable.
- Chassis mountable filter in fabricated metal can.
- CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
- Applications- Modems, Network Routing Equipment, Servers, Ethernet Hubs, Base Stations, Power Supplies, Photovoltaic Inverters, DC Motor Drives, DC Chargers, Frequency Inverters, Energy system
Download PDF
EC10 DC Filter Data Sheet
296 KB
