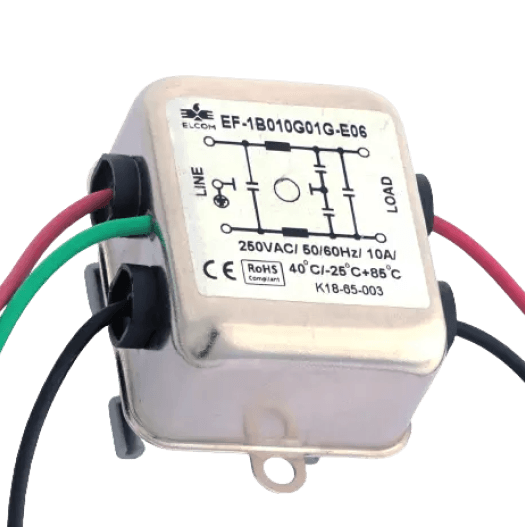

EE06
EE06
Specification
- Reference Standard
EN60939-3:2015 & EN60939- 2:2005 standards.
- Safety Approval
CSA, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
1A-20A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable for excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approvals
Safety
Approvals
Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features
Features of EE06 Filter
Features
of
EE06
Filter
Filters available in single stage and double stage.
All filters provide high attenuation performance.
Two stage filters designed for noisy application requiring excellent filter performance.
Easy and fast drill rail mounting filter with compact size.
CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
All filters compliance to EN60939-3:2015 & EN60939- 2:2005 standards.
Benefits
Benefits Of EE06
Benefits
Of
EE06
- High reliable.
- General purpose filters with low leakage current for safety critical application
- With surge suppressor filters also available
- Applications- Consumer product, Defence application, Medical equipment, Industrial application, Automotive application, Weighting Machines, Printing Machinery, Electrical equipment application, Office automation equipment.
Download PDF
Elcom EE06 Din Rail Mount Filter Data Sheet
439 KB
