EE07
EE07
Specification
- Reference Standard
EN60939-3:2015 & EN60939- 2:2005 standards.
- Approval
CE, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
1A-40A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable for excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approval
Safety
Approval
Parameters
Specification
CE marking
Yes
Features
Features of EE07 Filter
Features
of
EE07
Filter
Filters available in single stage and double stage
All filters provide high attenuation performance.
Two stage filters designed for noisy application requiring excellent filter performance.

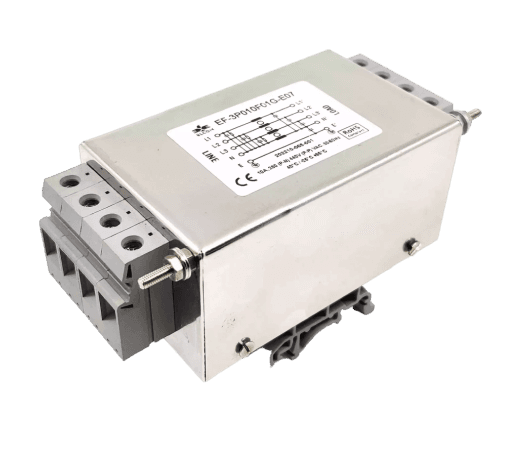

Easy and fast Din rail mounting filter with compact size.
CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
All filters compliance to EN60939-3:2015 & EN60939- 2:2005 standards.
Benefits
Benefits of EE07
Benefits
of
EE07
- High reliable.
- Filters available in medical version without capacitor to earth.
- General purpose filters with low leakage current for safety critical application
- With surge suppressor filters also available
- Applications- Consumer product, Defence application, Medical equipment, Industrial application, Automotive application, Weighting Machines, Printing Machinery, Electrical equipment application, Office automation equipment.
Download PDF
Elcom EE07 Filter Data Sheet
453 KB
