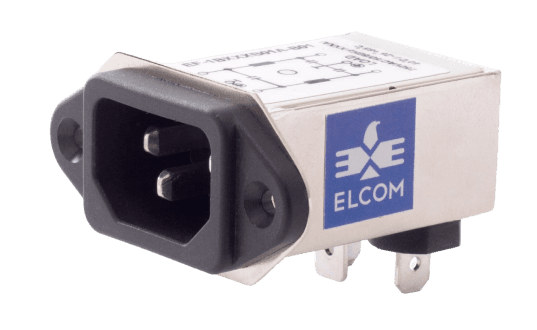

EB01
EB01
Specification
- Reference Standard
EN60939-3:2015 & EN60939-2:2005 standards.
- Approval
CE, CSA, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
1A-10A
Frequency
50/60Hz
Voltage drop
1 Volt max
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approvals
Safety
Approvals
Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features
Features of EB01 Filter
Features
of
EB01
Filter
All filters provide high attenuation performance.
Filter available in panel mounting provision.
CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
Input connection through IEC 60320 C14 plug.
Benefits
Benefits of EB01
Benefits
of
EB01
- Single stage and High reliable.
- Output connection with fast-on or wire terminal
- Filters available in medical version without capacitor to earth .With surge suppressor filters also available.
- Applications - Portable electrical and electronic equipment, Datacom equipment, Rack mounting equipment, Control Panel, Medical equipment, Industrial application, Electrical automation equipment, Test and measurement equipment
Download PDF
Elcom EB01 Filter
508 KB
