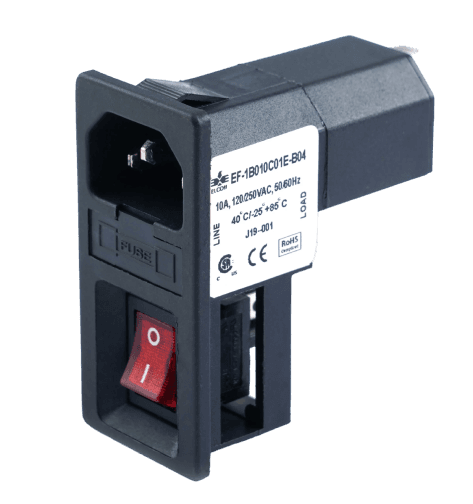

EB04
EB04
Specification
- Reference Standard
EN60939-3:2015 & EN60939-2:2005 standards.
- Approval
CE, ROHS, CSA
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
1A-10A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approvals
Safety
Approvals
Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features
Features of EB04 Filter
Features
of
EB04
Filter
All filters provides high attenuation performance
Filter available in snap-in mounting provision.
Single stage and High reliable.
Provision of single fuse holder.
Plastic housing with good aesthetic.
Input connection through IEC 60320 C14 plug.
Benefits
Benefits of EB04
Benefits
of
EB04
- Output connection with fast-on or wire terminal.
- Available with red illuminated switch.
- Filters available in medical version without capacitor to earth. With surge suppressor filters also available.
- Applications- Portable electrical and electronic equipment, Datacom equipment, Datacom equipment, SMPS, single phase power supplies, Medical equipment.
Download PDF
EB04 EMI EMC FIlter
462 KB
