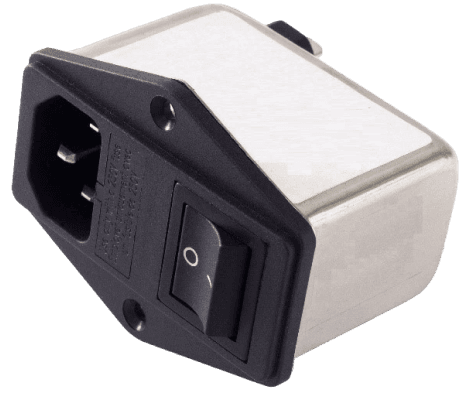

EB06
EB06
Specification
- Refence Standard
EN60939-3:2015 & EN60939-2:2005 standards
- Approval
CE, ROHS, CSA
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
1A-10A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approvals
Safety
Approvals
Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features
Features Of EB06 Filter
Features
Of
EB06
Filter
All filters provides high attenuation performance.
Filter available in panel mounting provision.
Provision of single fuse holder.
CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
Input connection through IEC 60320 C14 plug.
Output connection with fast-on.
Benefits
Benefits Of EB06
Benefits
Of
EB06
- Available with black non-illuminated switch.
- Filters available in medical version without capacitor to earth.
- With surge suppressor filters also available.
- Application- Portable electrical and electronic equipment, Datacom equipment, Control Panel, Medical equipment, SMPS, Test and measurement equipment's.
Download PDF
EB06 IEC 60320 Inlet Filter Data Sheet
427 KB
