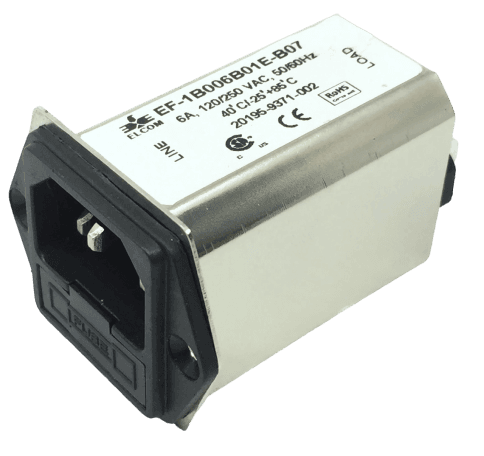

EB07
EB07
Specification
- Reference Standard
EN60939-3:2015 & EN60939-2:2005 standards
- Compliance Marking
CE, ROHS, CSA
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
1A-10A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable for excluding surge suppressor filters)
nsulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approvals
Safety
Approvals
Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features
Features Of EB07 Filter
Features
Of
EB07
Filter
All filters provide high attenuation performance.
Filter available in panel mounting provision.
CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
Input connection through IEC 60320 C14 plug
Benefits
Benefits Of EB07
Benefits
Of
EB07
- Provides single fuse protection.
- Have choice to select output connection type
- Filters available in medical version without capacitor to earth. With surge suppressor filters also available.
- Application- Consumer product, Medical equipment, Industrial application, Weighing machines, Electrical automation equipment, Testing and measurement equipment
Download PDF
EB07 Filter Data Sheet
435 KB
