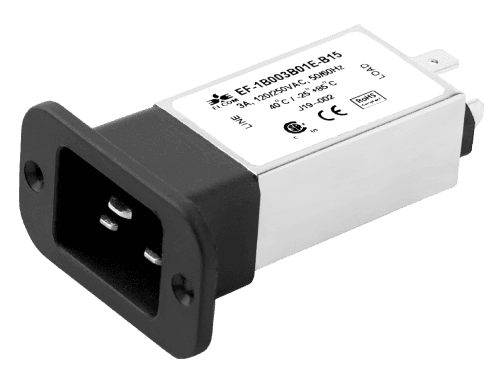

EB15

Specification
certiicon1
certiicon1
certiicon1
  • Reference Standard

    EN60939-3:2015 & EN60939-2:2005 standards.

  • Compliance Marking

    CE, CSA, ROHS

Specification
starIcon

Technical
Specification

Parameters
Specification
Operating voltage
120/250 VAC
Current rating
1A-20A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable for excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
starIcon

Safety
Approvals/Compliance
Marking

Parameters
Specification
cCSAus
Yes
CE, RoHS
Yes
Features

Features
of
EB15
Filter

  • Filters available in single stage and double stage.

  • Filter available in panel mounting provision.

  • CRCA metal can with nickel plating provides good aesthetic and corrosion protection.

  • Input connection through IEC 60320 C20 plug

Benefits

Benefits
Of
EB15

  • Elcom EB15 filters gives choice to select output connection type.
  • Filters available in medical version without capacitor to earth.
  • With surge suppressor filters also available.
  • Applications - Consumer product, Medical equipment, Industrial application, Electrical automation equipment, Solar inverter
Download PDF
PDF
EB15 Data Sheet
640 KB
