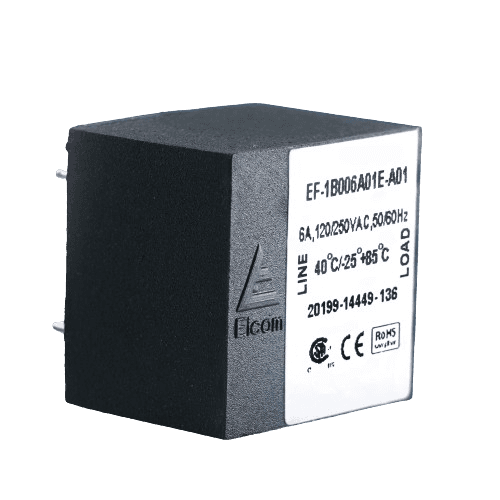

EA01

Specification
certiicon1
certiicon1
certiicon1
  • Reference Standards

    EN60939-3:2015 & EN60939- 2:2005 standards

  • Approval

    CSA, CE, ROHS

Specification
starIcon

Technical
Specification

Parameters
Specification
Operating voltage
120/250 VAC
Current rating
1A-10A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
starIcon

Safety
Approvals

Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features

Features
of
EA01
Filter

  • All filters provide high attenuation performance.

  • Plastic housing with good aesthetic.

  • Input and output connection through soldering pins.

  • Filters available in medical version without capacitor to earth. With surge suppressor filters also available.

Benefits

Benefits
of
EA01

  • Cost effective solution.
  • Elcom EA01 filter is high reliable.
  • Single stage filter.
  • Application - Electrical and electronic equipment, Consumer product, Medical equipment, SMPS, Test & measurement equipment, Small to medium-sized machines and household equipment, Office automation equipment
Download PDF
PDF
Elcom EA01 EMI EMC Filter
386 KB
