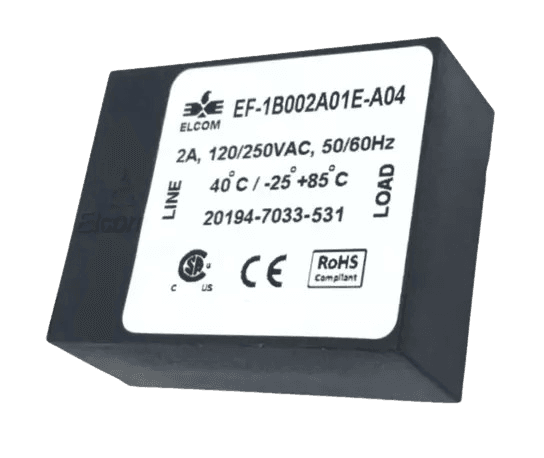

EA04
EA04
Specification
- Reference Standard
N60939-3:2015 & EN60939- 2:2005 standards.
- Approval
CE, CSA, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
1A to 6A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approvals
Safety
Approvals
Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features
Features of EA04 Filter
Features
of
EA04
Filter
All filters provide high attenuation performance
Compact PCB-mountable design.
High reliable.
Input and output connection through soldering pins.
Single stage.
All filters compliance to EN60939-3:2015 & EN60939- 2:2005 standards.
Benefits
Benefits of EA04 Filter
Benefits
of
EA04
Filter
- Filters available in medical version without capacitor to earth.
- With surge suppressor filters also available
- Cost effective solution.
- Plastic housing with good aesthetic.
- Applications - Electrical and electronic equipment, Consumer product, Medical equipment, SMPS, Test & measurement equipment, Small to medium-sized machines and household equipment
