Products>EMI EMC Products>Power Cord Filter>ED01
esrseries
  • image0

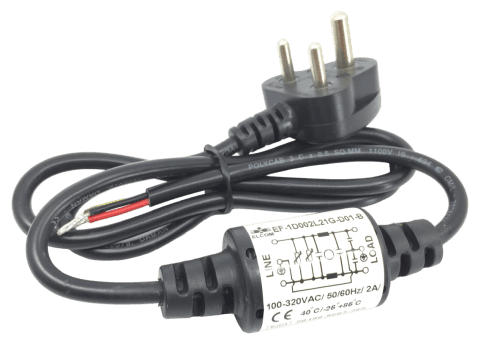

ED01

Request a Quote
Specification
certiicon1
certiicon1
certiicon1
  • Reference Standard

    EN60939-3:2015 & EN60939-2:2005 standards.

  • Approval

    CE, ROHS, CSA

Specification
starIcon

Technical
Specification

Parameters
Specification
Operating voltage
120/250 VAC
Current rating
1A-10A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable for excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
starIcon

Safety
Approvals

Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features

Features
of
ED01
Filter

  • Filters available in single stage.

  • All filters provide high attenuation performance.

  • Filters available in medical version without capacitor to earth.

  • All filters compliance to EN60939-3:2015 & EN60939-2:2005 standards.

Benefits

Benefits
of
ED01

  • High reliable.
  • Choice for selection of terminal/connector
  • General purpose filters with low leakage current for safety critical application.
  • With surge suppressor filters also available.
  • Applications-Consumer product, Medical equipment, Escalator/ Elevator, solar inverters, Instrumentation & Control Devices
Download PDF
PDF
ED01
439 KB
download
