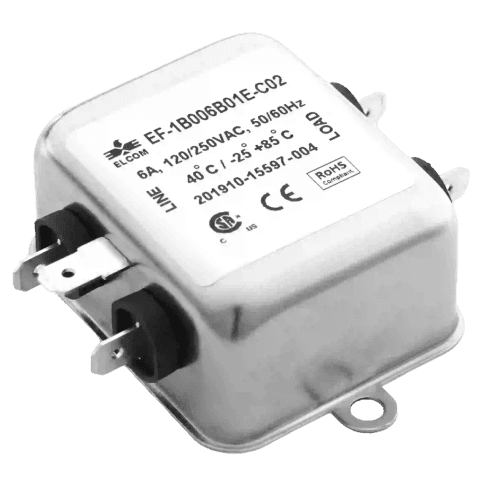

EC02
EC02
Specification
- Reference Standard
EN60939-3:2015 & EN60939- 2:2005 standards.
- Approval
CSA, CE, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
1A-20A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable for excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approvals
Safety
Approvals
Parameters
Specification
CE marking
Yes
cCSAus
YEs
Features
Features Of EC02 Filter
Features
Of
EC02
Filter
Filters available in single stage and double stage
All filters provide high attenuation performance
Two stage filters designed for noisy application requiring excellent filter performance.
Easy and fast chassis mountable filter in deep drawn metal can with compact size.
CRCA metal can with nickel plating provides good aesthetic and corrosion protection
All filters compliance to EN60939-3:2015 & EN60939- 2:2005 standards.
Benefits
Benefits Of EC02
Benefits
Of
EC02
- High reliable
- Filters available in medical version without capacitor to earth.
- General purpose filters with low leakage current for safety critical application.
- With surge suppressor filters also available.
- Various terminal options are available.
- Application - Consumer product , Defence application, Medical equipment, Industrial application ,Automotive application, Weighting Machines , Printing Machinery, Electrical equipment application, Office automation equipment
