EC03
EC03
Specification
- Reference Standard
EN60939-3:2015 & EN60939-2:2005 standards
- Approval
CE, CSA, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
1A-10A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable for excluding surge suppressor filter
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approval
Safety
Approval
Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features
Features Of EC03 Filter
Features
Of
EC03
Filter
All filters provide high attenuation performance.
All filters compliance to EN60939-3:2015 & EN60939-2:2005 standards

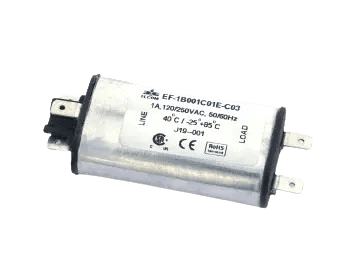

Chassis mountable filter in oval shape aluminum metal can with mounting clamp.
Filters available in medical version without capacitor to earth.
General purpose filters with low leakage current for safety critical application.
With surge suppressor filters also available.
Download PDF
Elcom EC03 Data Sheet
341 KB
